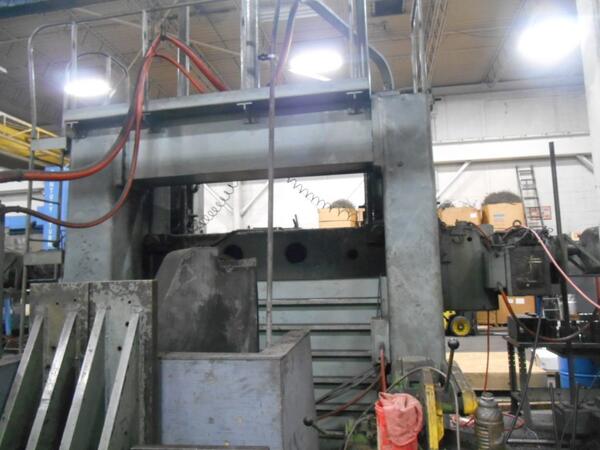

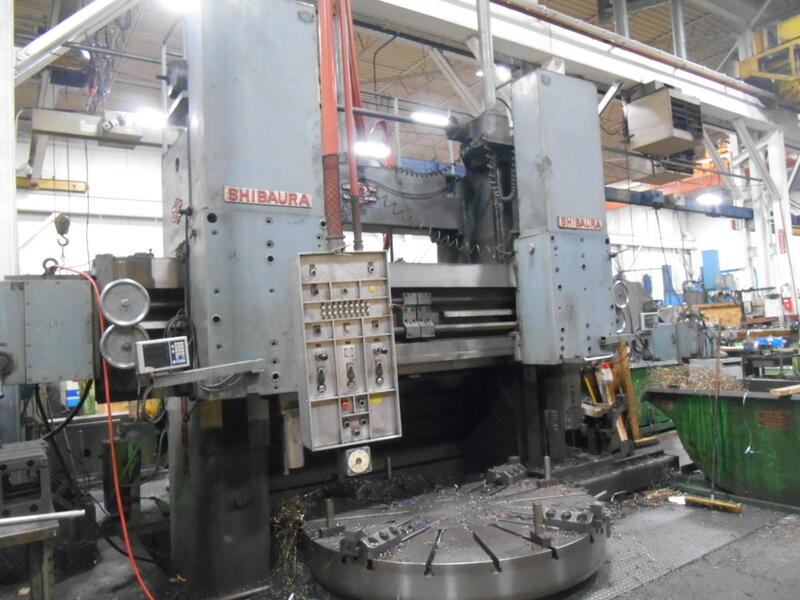

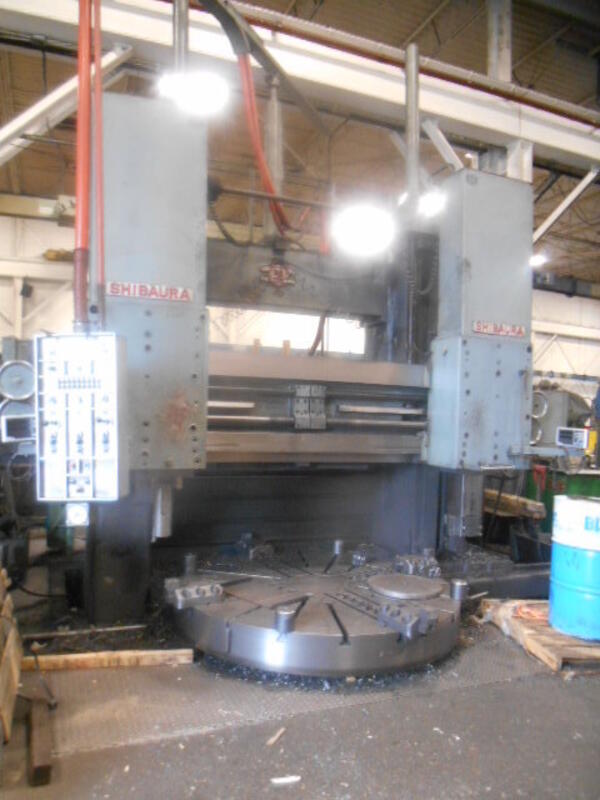

1977 Toshiba SHIBAURA TD 20-23
Vertical Boring Mill

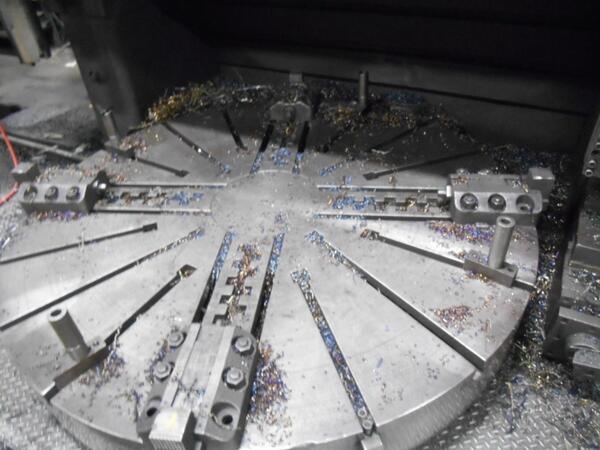

TABLE SIZE: 78-3/4″ (2000MM)
MAXIMUM SWING: 90-1/2″ (2300MM)
MAXIMUM TURNING HEIGHT ABOVE TABLE: 59″ (1500MM)
(2) SWIVELING RAMS WITH HARDEND WAYS: 30 DEG SWIVEL BOTH DIRECTIONS
RAM STROKE: 39-1/3″ (1000MM)
RAM SIZE: 7-3/4″ SQUARE (200MM)
(18) TABLE SPEEDS: 2-100 RPM
FEED: INFINATELY VARIABLE
MAXIMUM ALLOWABLE TABLE TORQUE: 13,000LBS
MAX ALLOWABLE WEIGHT ON TABLE: 32,000 lbs
FULL PENDANT CONTROL FOR TABLE AND BOTH AXIS

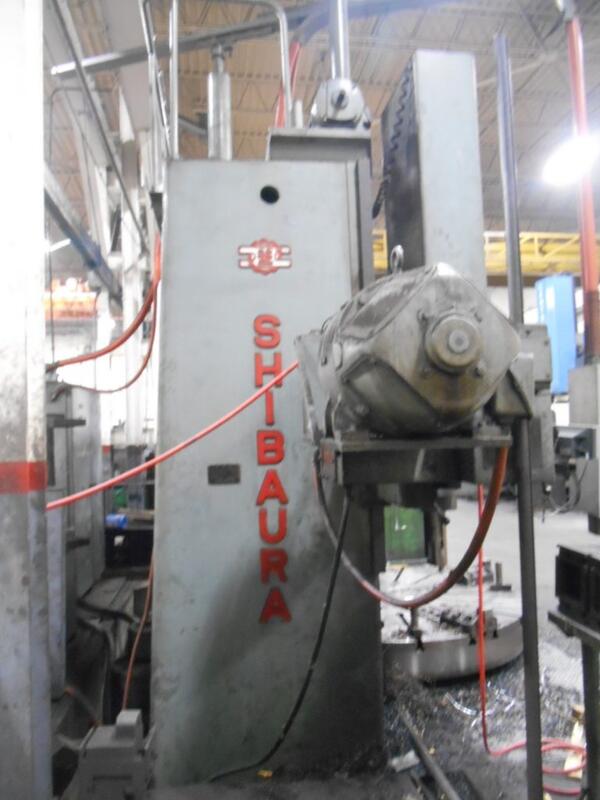

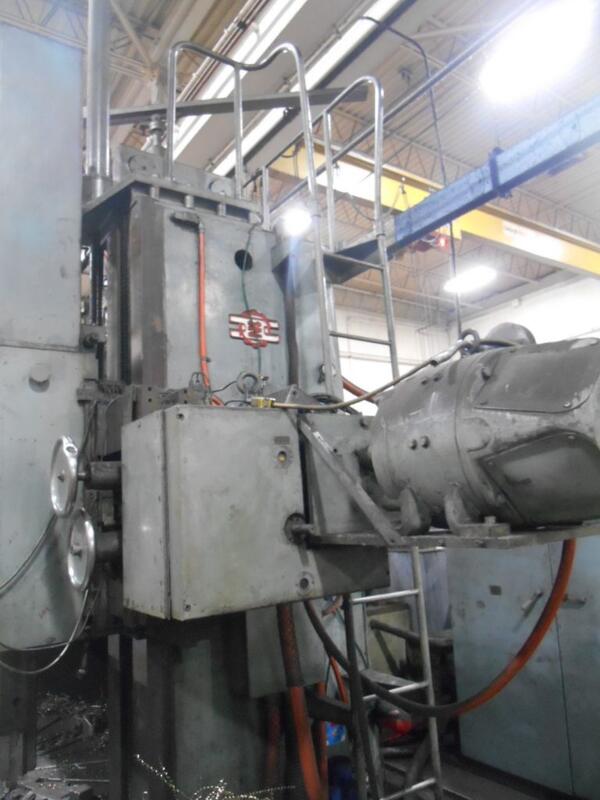

MAIN MOTOR: 53 ½ H.P. (40KW)
-EQUIPPED WITH-
THREADING
SIDE HEAD

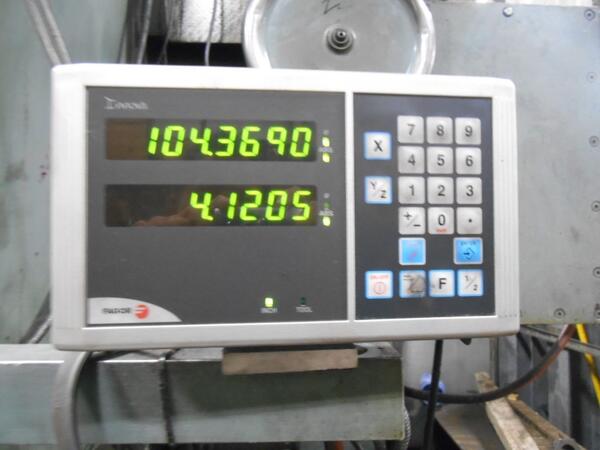

DIGITAL READOUT
NEW ELECTRICAL PANEL ADDED IN THE 1980’s
APPROX TOTAL WEIGHT: 26 TON (52,000LBS)
TOTAL FLOOR SPACE REQUIRED: 236″ X 126″ X 220″ HIGH
