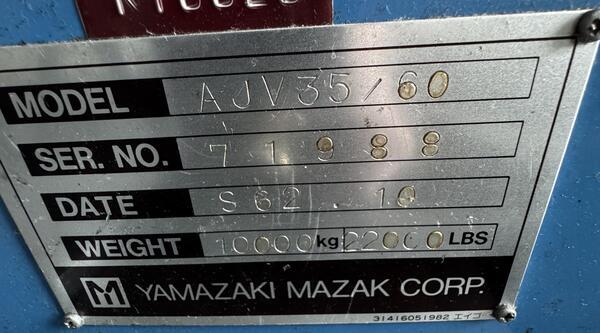

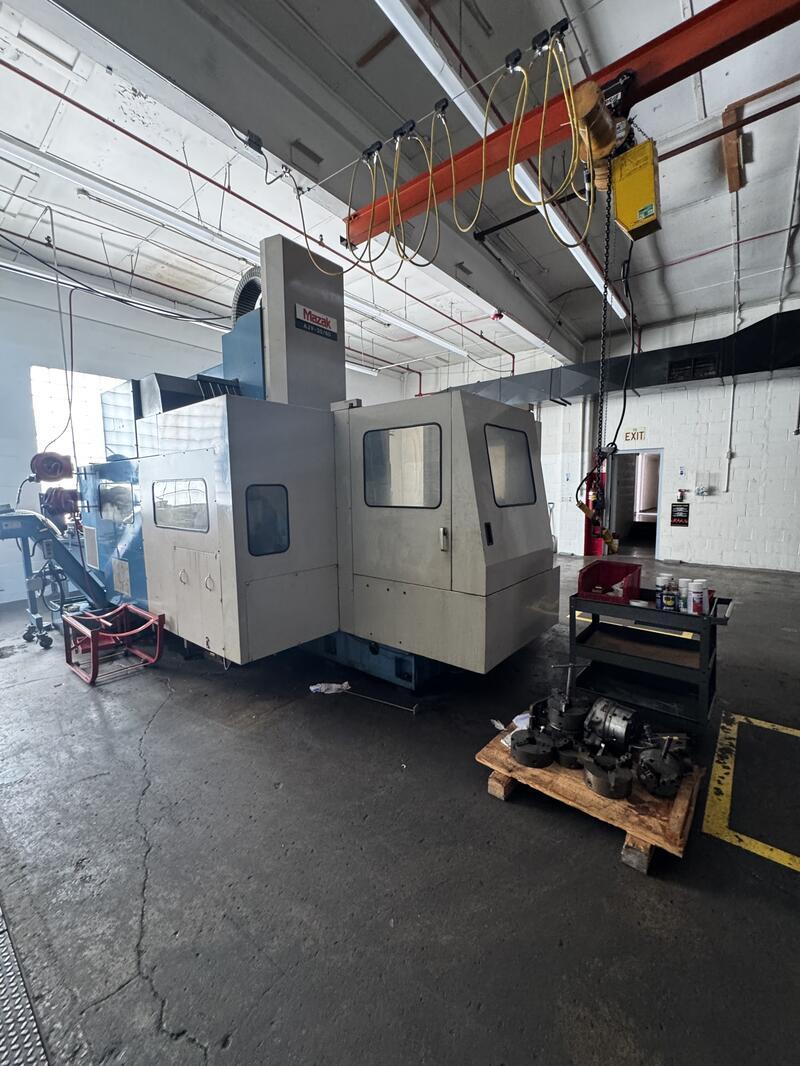

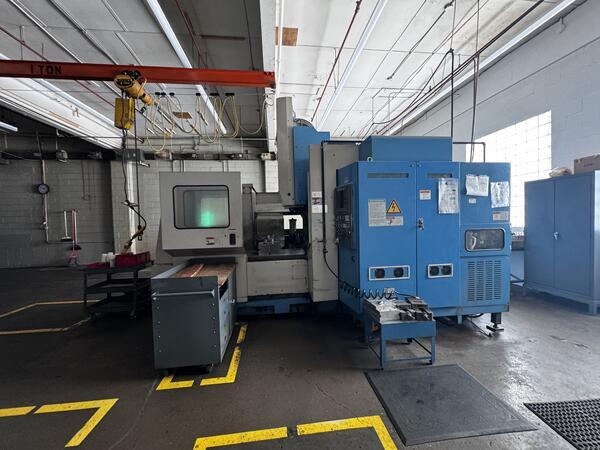

1988 Mazak AJV 35-60
Vertical Machining Center
Travels:
X-Axis: 1500 mm (59")
Y-Axis: 800 mm (31")
Z-Axis: 508 mm (20") to 708 mm
Table:
Dimensions: Approx. 1740 x 750 mm
Max Load: Approximately 2,500 kg
Spindle:
Taper: ISO 50 / BT50
Speed: 22 - 3150 RPM (some variants up to 10,000 RPM)
Power: 22/26 kW or 35 AC
Tooling:
Capacity: 30-40 tools
Max Tool Weight: 15 kg
Weight & Dimensions:
Weight: Approximately 11,000 kg
Height: Approx. 3429 mm
-EQUIPPED WITH-
Mazak CNC Control

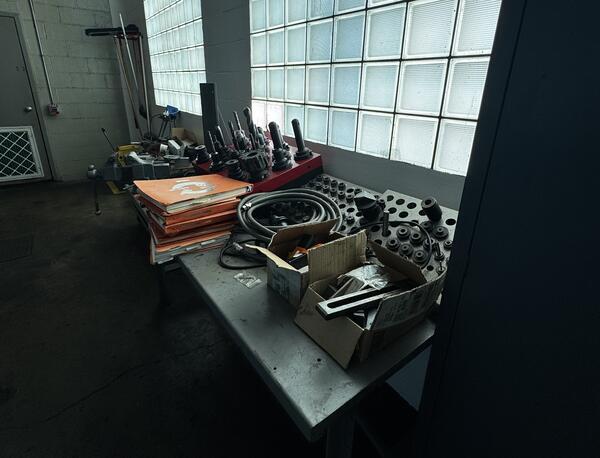

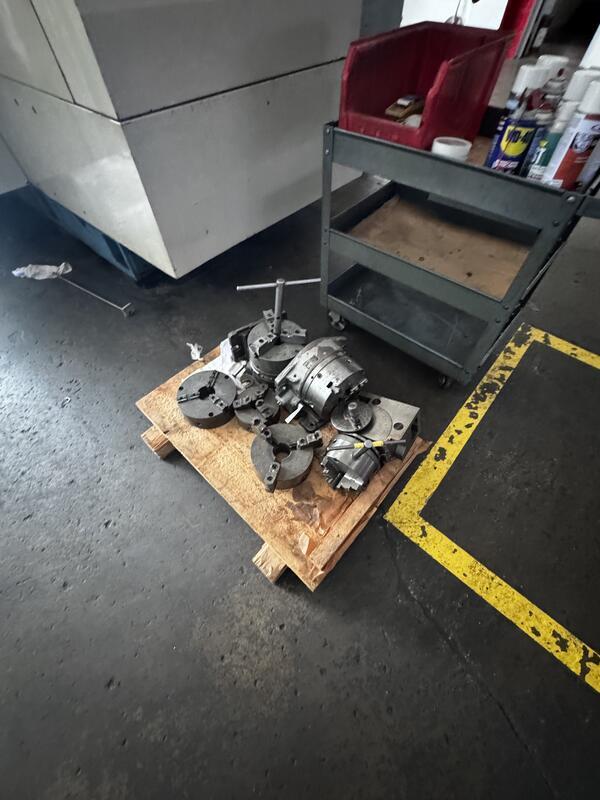

Extra Misc Tools
