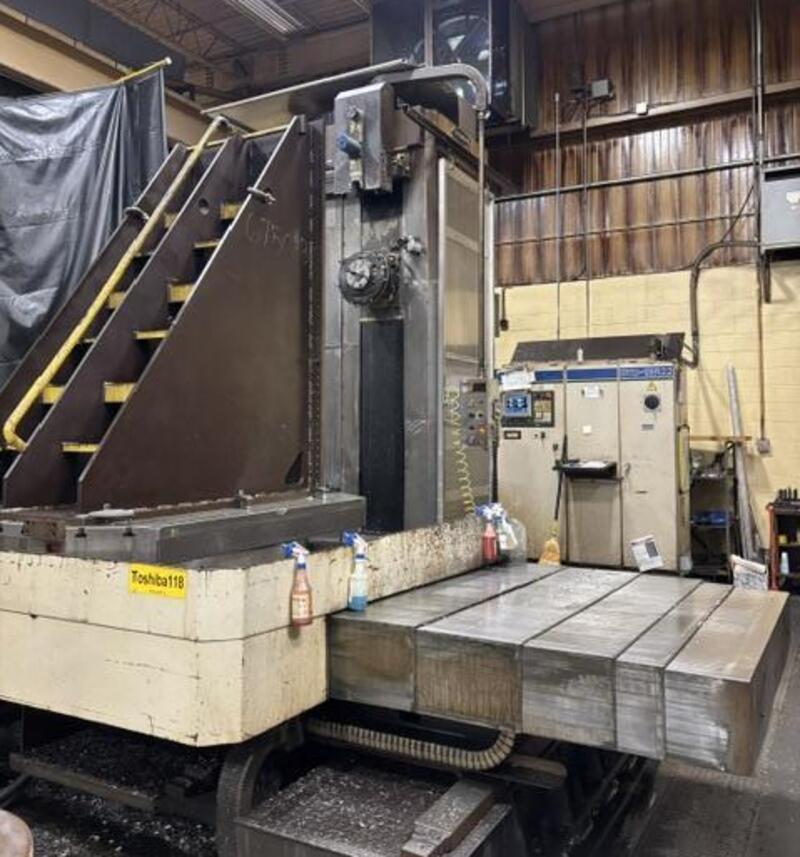

1994 Toshiba BTD-13R22
CNC Horizontal Boring Mill
Spindle Diameter: 5.12"
Taper In Spindle: #50
Vertical Travel Of Headstock Y-Axis: 90.5"
Cross Travel Of Table X-Axis: 118"
Spindle Travel (In & Out) W-Axis: 27.56"
Saddle Travel In & Out Z-Axis: 62.99"
Table Size (Built In B-Axis) W/Shuttle: 70.8" X 86.6"
Table Load Capacity: 22,000 LBS
Table Indexing: .001 Degrees
Spindle Speeds (2-Ranges) Inf. Variable: 5-2500 RPM
-EQUIPPED WITH-

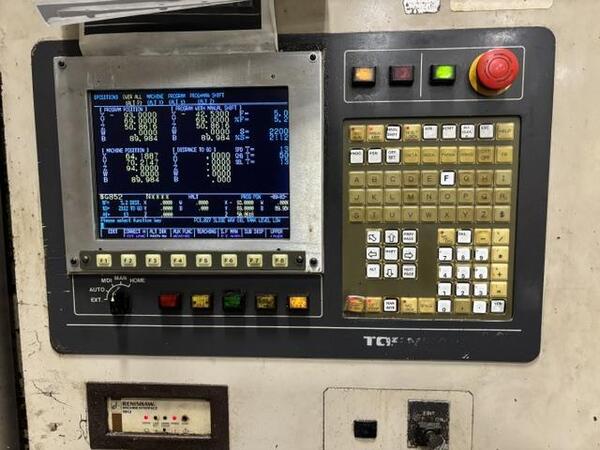

Tosnuc 777-2 4-Axis CNC Control
Manual Pendant With 3-Axis Digital Readout
60-Station Automatic Tool Changer
(2) 70.86" x 86.6" Pallets W/Shuttle System
B-Axis Rotary Table
Chip Conveyor
30/25 HP Spindle Motor
