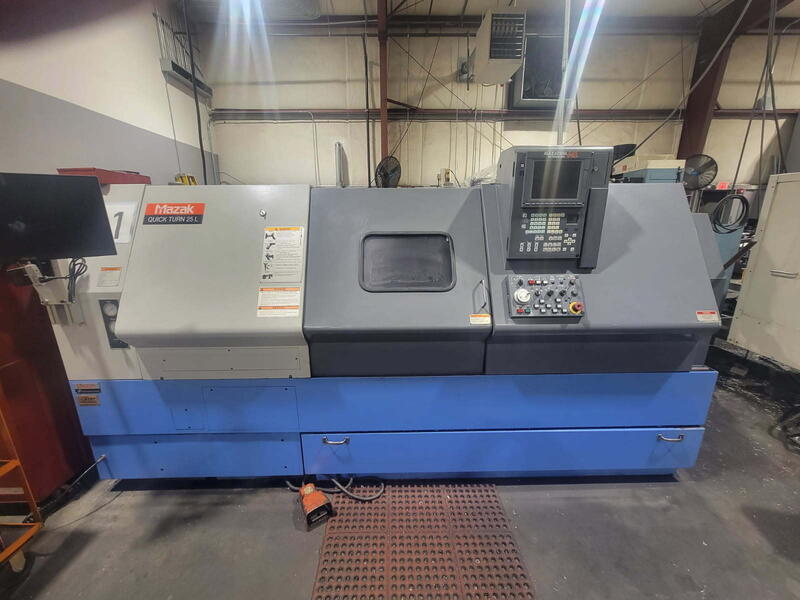

1998 Mazak QUICK TURN 25L
CNC Turning Center
Chuck Size: 10" (3-Jaw)
Max Diameter Bar Capacity: 2.75"
Max Swing Over Bed / Carriage: 20.8" / 15.75"
Max Turning Diameter: 12.6"
Max Machining Length: 48.03"
Main Motor: 25/20 HP AC
Spindle Speed: 36 - 3600 RPM
Tools: 12D / 24P
Spindle Bore: 3.15"
Spindle Nose: A2-8
Spindle Torque: 319.7 ft. lbs.
Rapid Traverse Rates (X/Z): 708 / 787 IPM
X-Axis Travel: 7.87"
Z-Axis Travel: 48.43"
Turret Index (Single Step / Full): 0.6 / 1.8 Seconds
Tailstock Taper: MT #4
Machine Dimensions (L x W x H): 142.9" x 72.8" x 71.9"
Machine Weight: 12,000 lbs.
-EQUIPPED WITH-

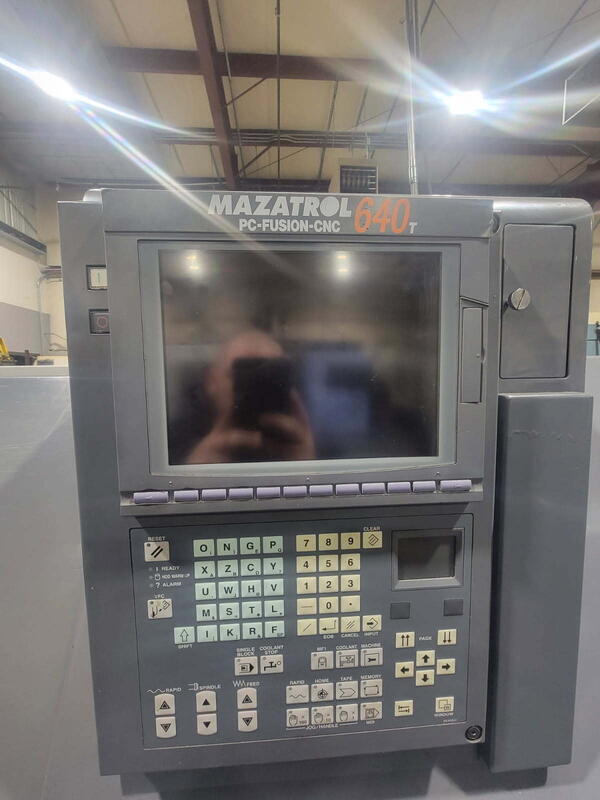

MAZATROL 640 Fusion CNC CONTROL Conversational Programming
12" Monochrome CRT Graphic Display
3.5" Floppy Disc Drive 1.5 MB Memory
48" Cutting Length
10" Hydraulic Chuck
Programmable Tool Eye
Programmable Tailstock Body & Quill
Manual Steady Rest
Chip Conveyor

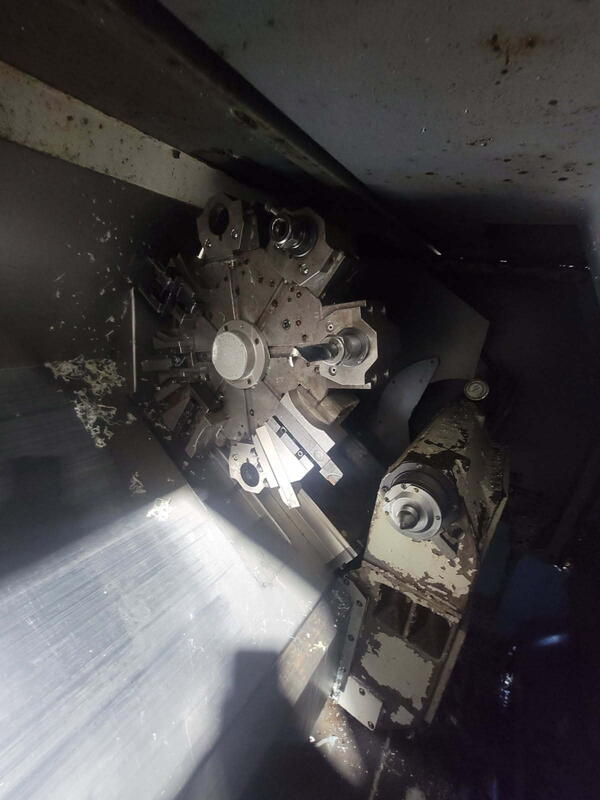

16 Station Turret
