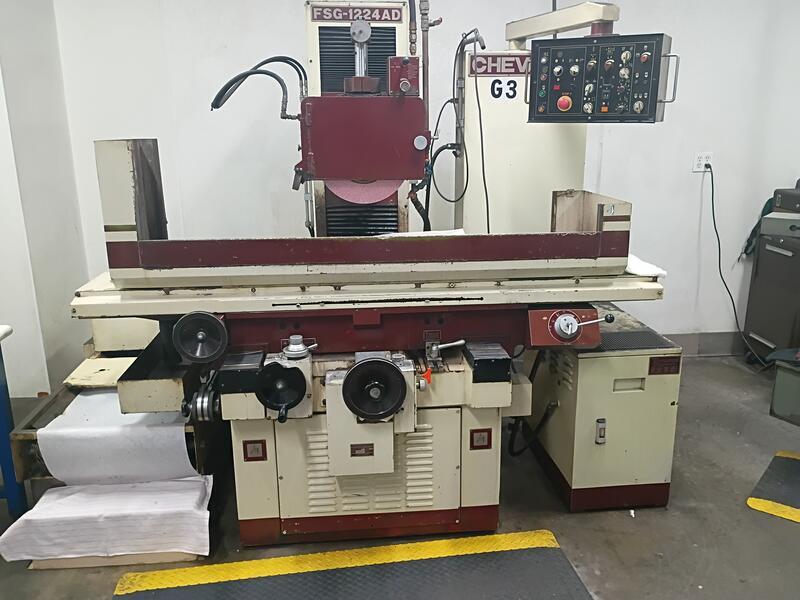

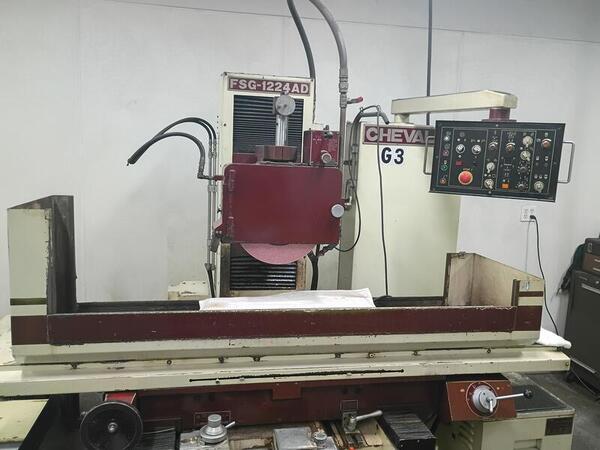

2000 CHEVALIER FSG-1224AD
Automatic Hydraulic Surface Grinder
Table size- 11-3/4" x 25-3/8"
Max grinding capacity- 12" x 24"
Longitudinal travel- 25-5/8"
Cross travel- 12"
Max distance from spindle center to table- 19-3/4"
Variable table speed- 16 – 82 F.P.M.
Automatic crossfeed increment- 1/8" – 1-1/4"
Crossfeed handle graduation- 0.0025"
Crossfeed fine handle graduation- 0.0005"
Automatic incremental downfeed- 0.00005" – .002"
Auto downfeed dial graduation- 0.0005"
Downfeed fine handle graduation- .0001"
Rapid traverse rate- 8" I.P.M.
-EQUIPPED WITH-

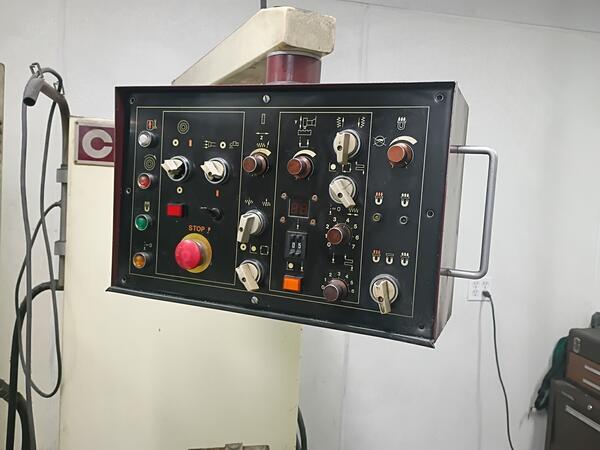

Microprocessor control for automatic incremental downfeed

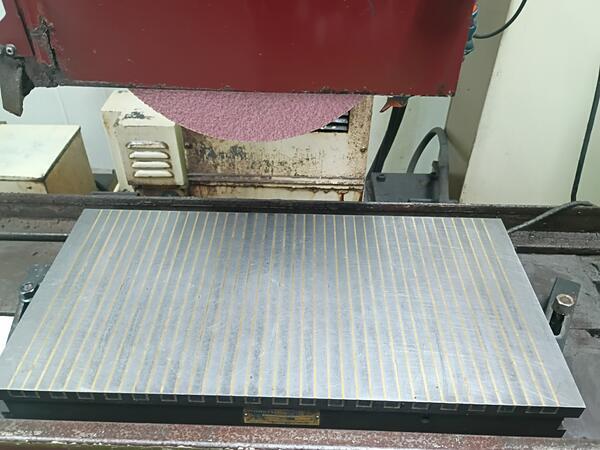

12" x 24" Walker Electromagnetic Fine pole chuck
Coolant tank & Pump
Hydraulic tank & Pump
5 H.P. spindle motor 230 / 460 dual voltage
Machine is wired for 460 volt / 3 phase / 60 H.Z.
Machine weight- 5,000 Lbs.
Machine dimensions- 98" x 68" x 88" H
