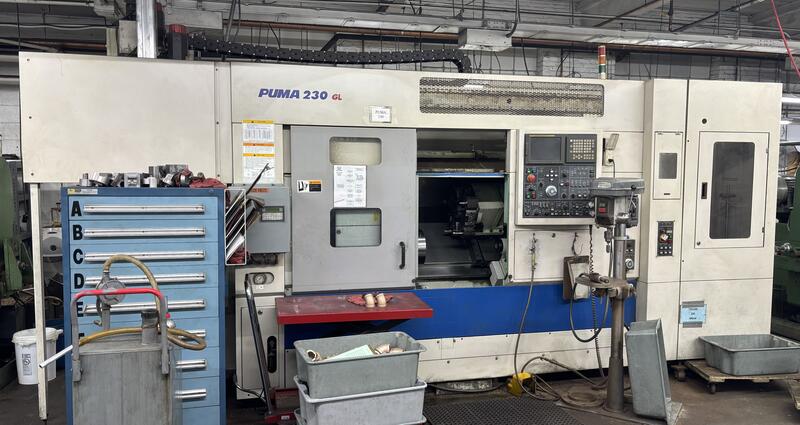

2000 Daewoo PUMA 230C-GL
CNC Turning Center
Max Turning Diameter: 13.78″
Max Turning Length: 21.57″
Max Bar Capacity: 3.0″
Swing Over Bed: 20.1″
X Axis Travel: 9.53″
Z Axis Travel: 22.83″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 1000 IPM
Spindle Nose: A2-8
Spindle Bore: 3.54″
Spindle Speed: 35 – 3500 RPM
Spindle Motor: 15/18.5 kw
Turret Capacity: 12 Station
-EQUIPPED WITH-
Fanuc 18t CNC Control
Chuck and Tailstock

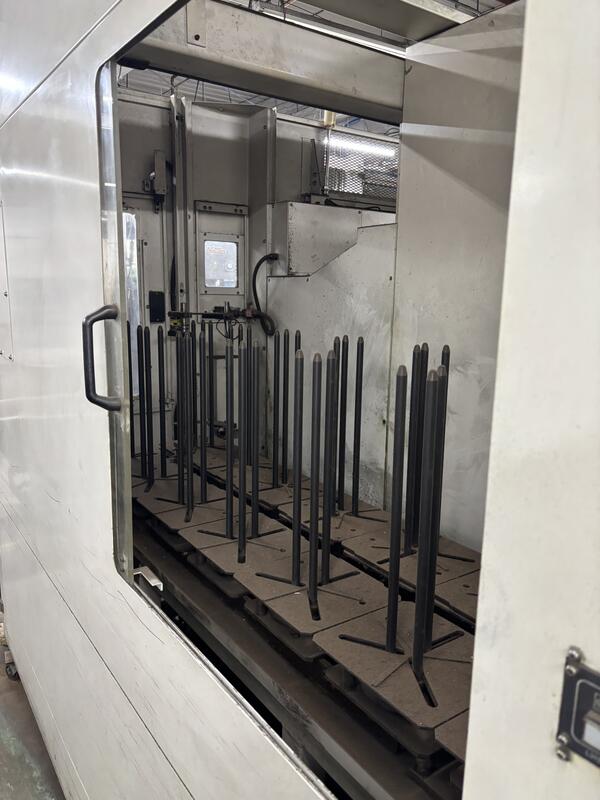

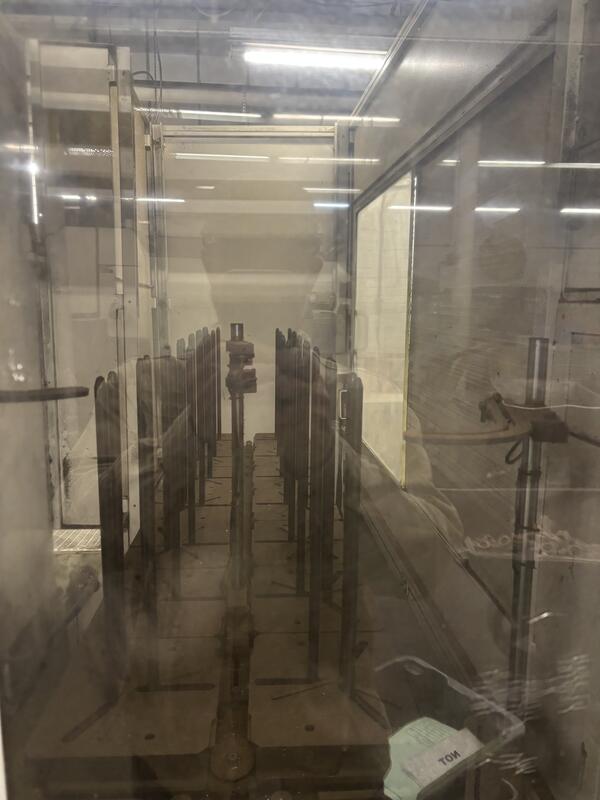

Gantry Loading System

REQUEST A QUOTE FOR THIS MACHINE
