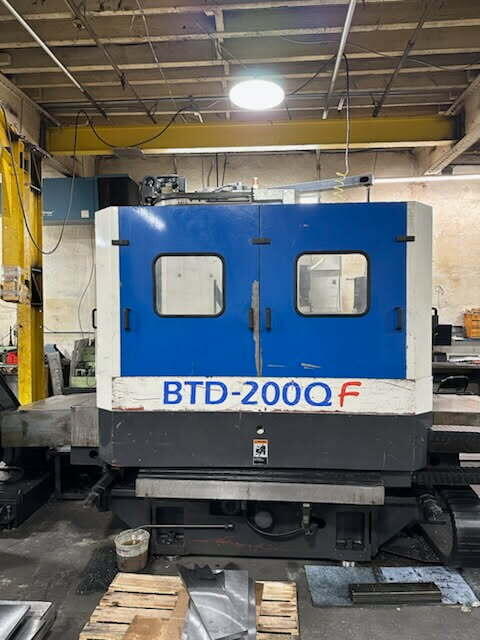

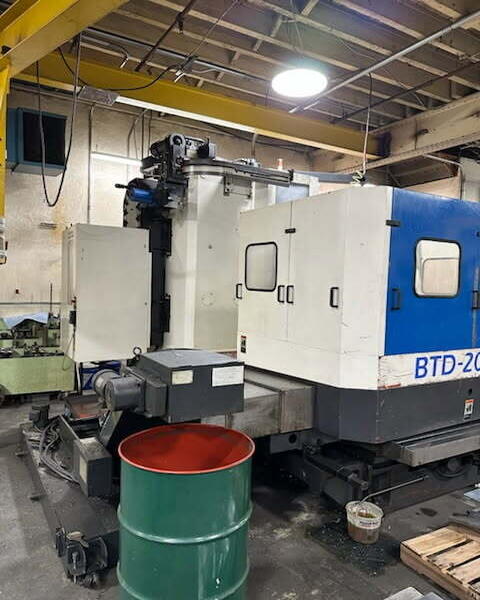

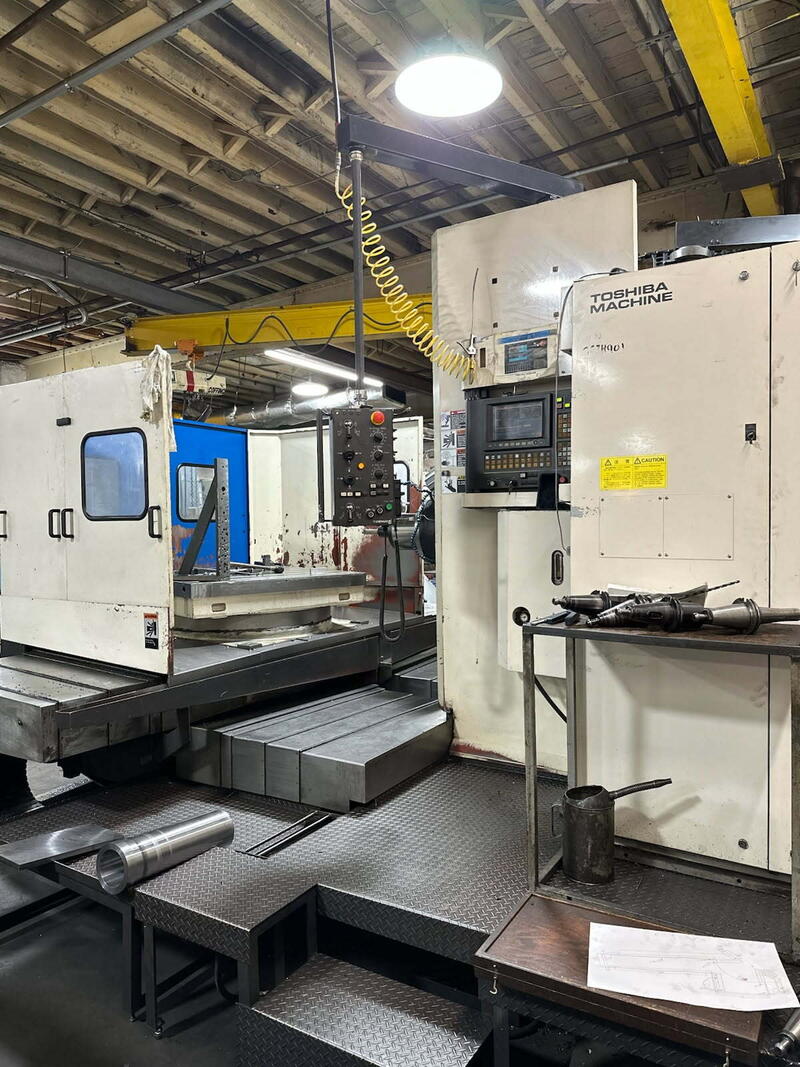

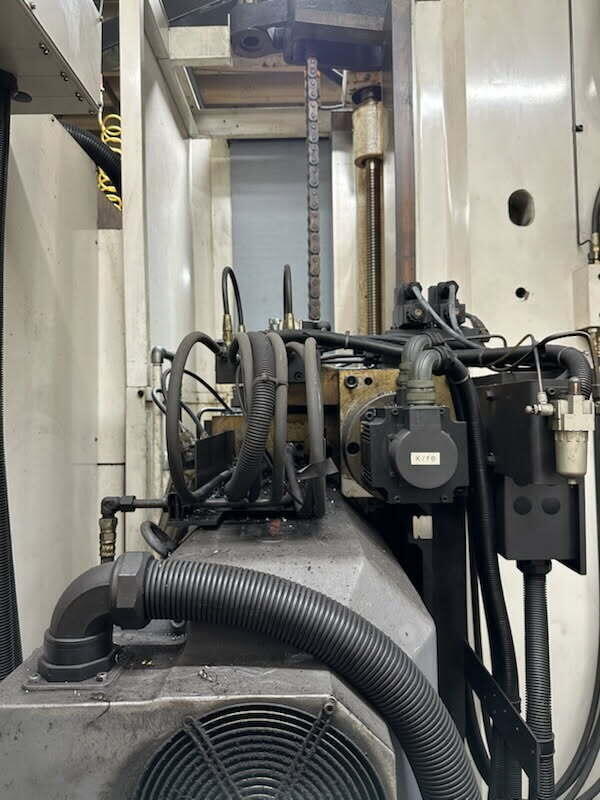

2000 Toshiba BTD-200QF
CNC Horizontal Boring Mill
Spindle Diameter: 4.33"
Extended Quill Diameter: 7.87"
Taper In Spindle: #50
Vertical Head Travel, Y-Axis: 39.37"
Table Cross Travel, X-Axis: 39.37"
Spindle Travel, Z-Axis: 15.74"
Saddle Travel, W-Axis: 27.55"
Table Size, (2) Pallets: 39.37" x 39.37"
Table Capacity: 6,000 lbs
Table Indexing: 0.001 Degree
Rapid Traverse (X,Y,Z Axes): 472.4 IPM
Feed Rates: .04-236.2 IPM
Table Load Capacity: 6,600 LBS
Spindle Speeds (2 Ranges): 20-3000 RPM
Floor Space, L x W x H: 173" x 174" X 126"
Machine Weight: 39,600 lbs.
-EQUIPPED WITH-

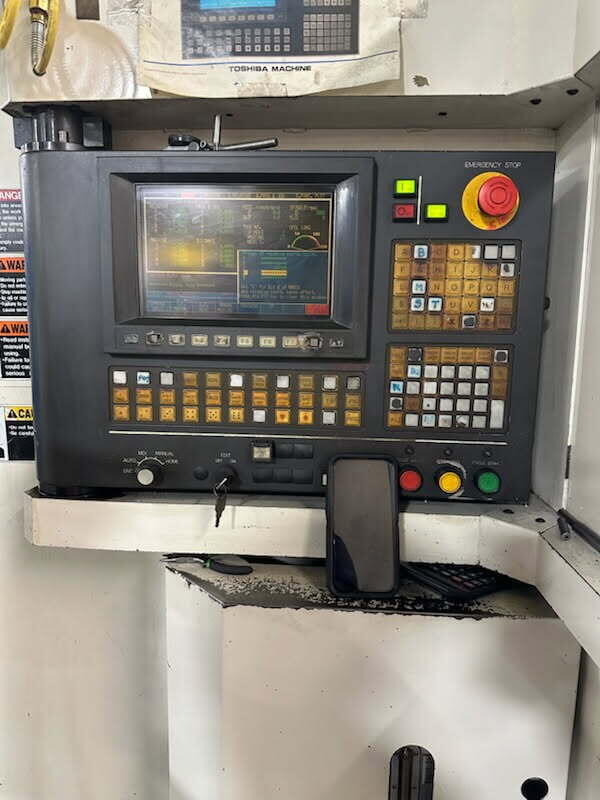

Tosnuc 888 CNC Controls

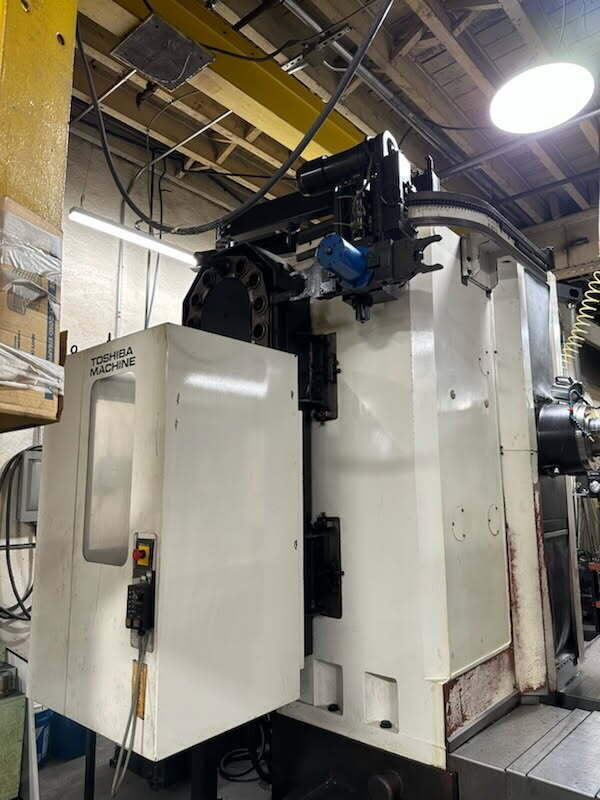

40-Station Automatic Tool Changer

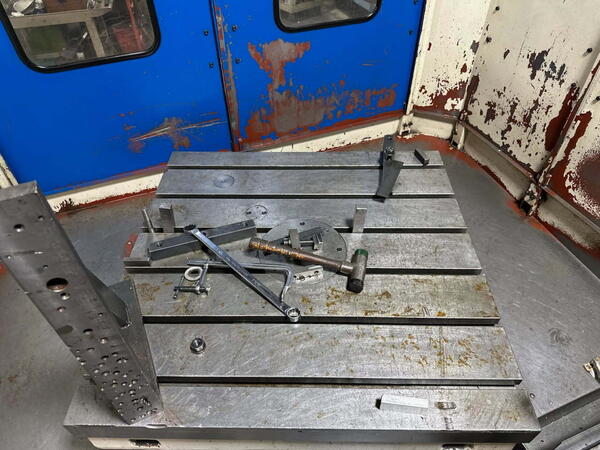

(2) 39.37" x 39.37" Pallets with Pallet Shuttle System
Thru Spindle Coolant
Marposs Probing System
Chip Conveyor
30 HP Spindle Motor
