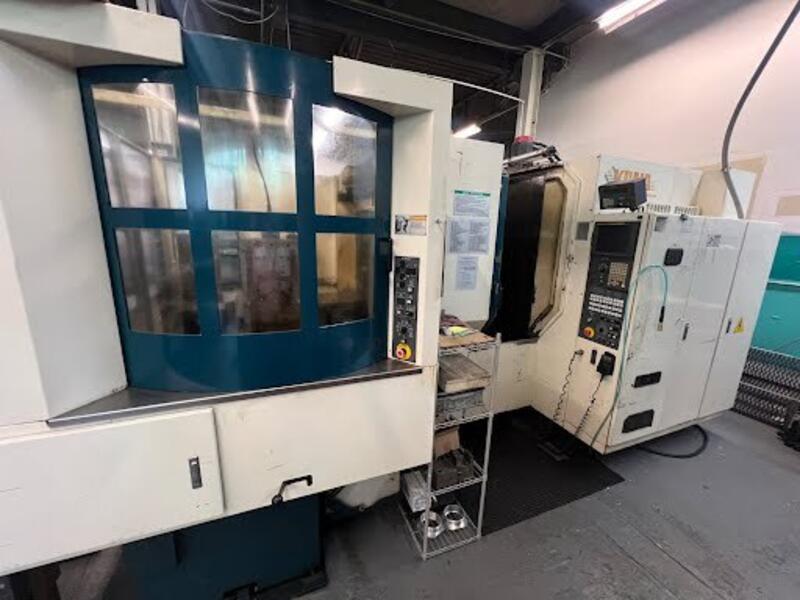

2001 Kiwa KNH-400
5-Axis Horizontal Machining Center
X-AXIS TRAVEL: 23.62"
Y-AXIS TRAVEL: 23.62"
Z-AXIS TRAVEL: 19.8"
B-AXIS INDEXING: 0.001 DEG
NUMBER OF PALLETS: 6
PALLET SIZE: 15.75" X 15.75"
MAX PALLET LOAD: 880 LBS
SPINDLE SPEED: 10,000 RPM
SPINDLE TAPER: CAT-40
SPINDLE MOTOR: 25 HP

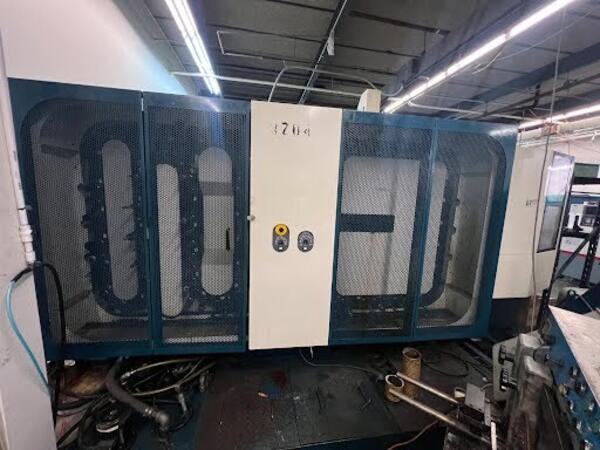

TOOL CHANGER CAPACITY: 120 ATC
TOOL-TO-TOOL TIME: 1.2 SECONDS
RAPID TRAVERSE RATES(X/Y/Z AXES): 1,968 IPM
MACHINE DIMENSIONS: 110" W X 157" L X 103" H
MACHINE WEIGHT: 19,000 LBS
-EQUIPPED WITH-

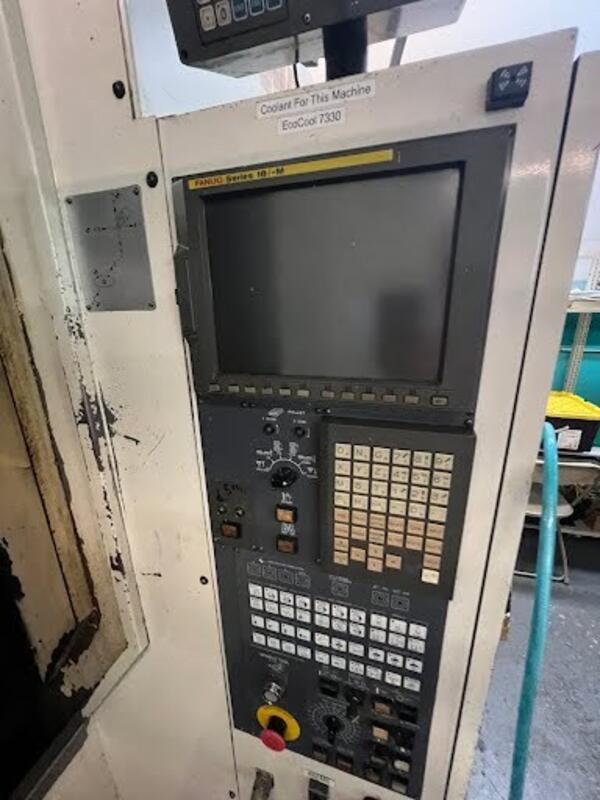

FANUC 18I-MA CNC CONTROL
6-STATION PALLET CHANGER
HIGH PRESSURE COLLANT SYSTEM


REQUEST A QUOTE FOR THIS MACHINE
