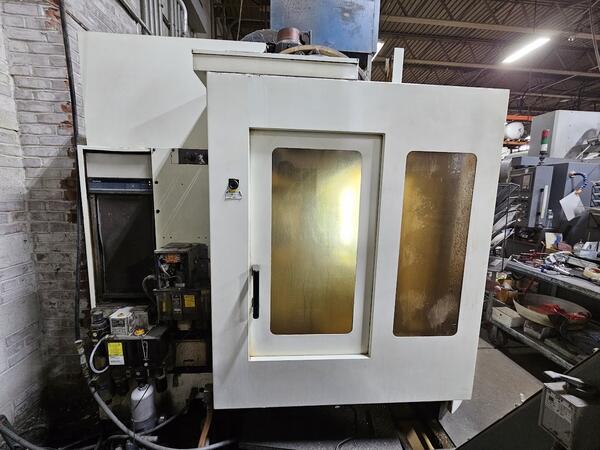

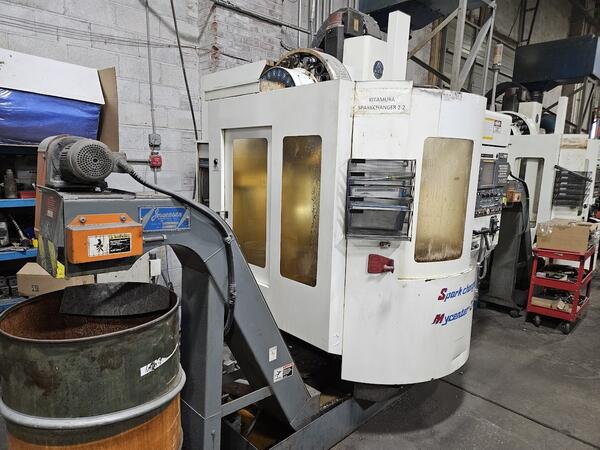

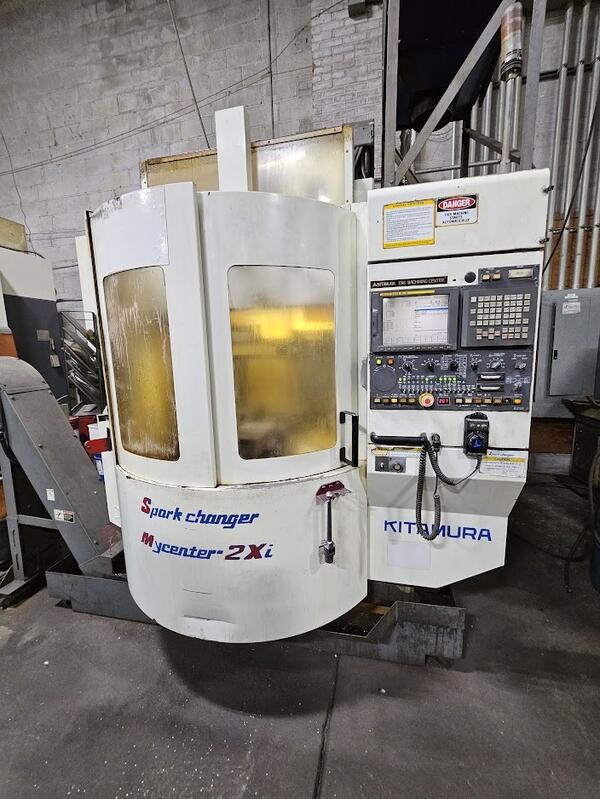

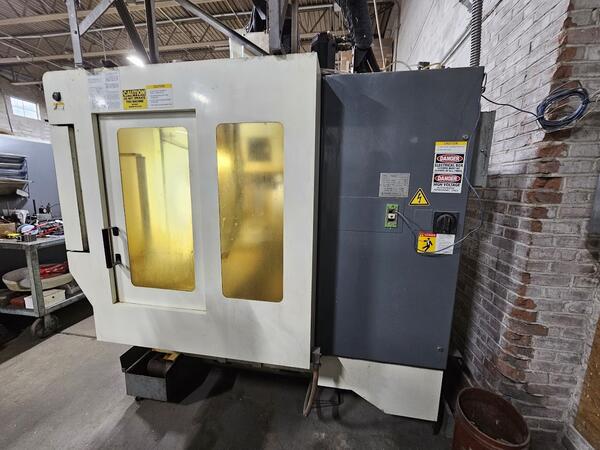

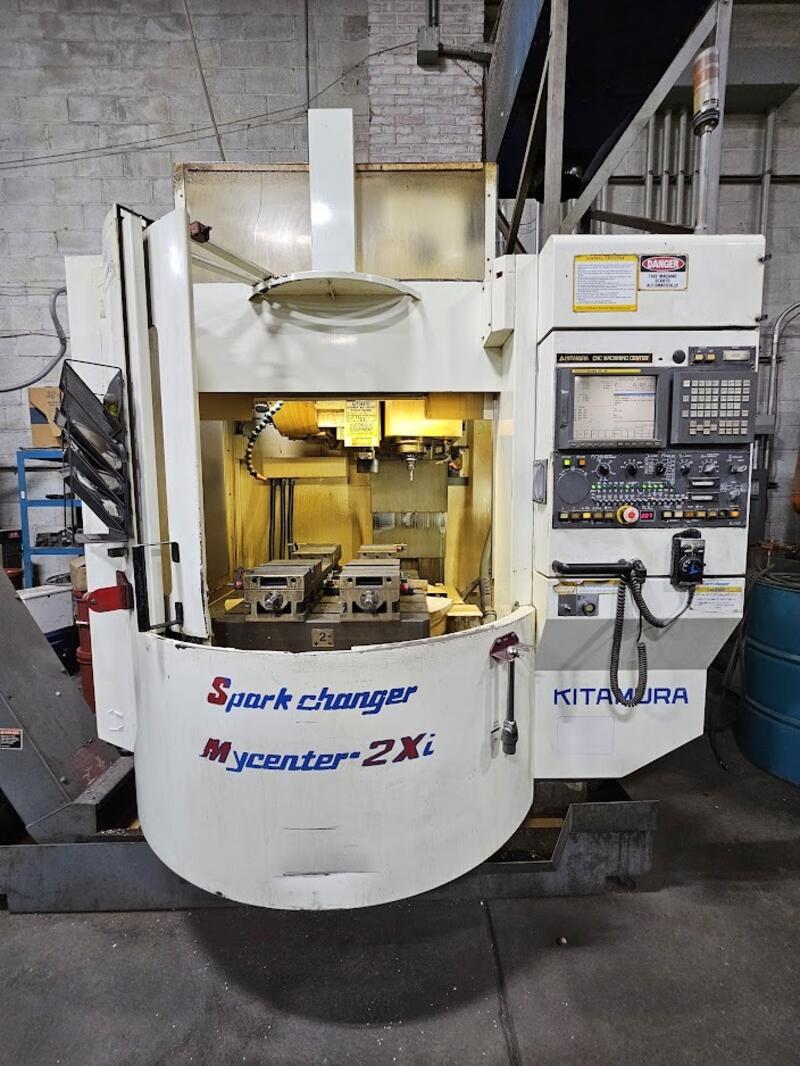

2002 Kitamura MYCENTER 2XI SPARKCHANGER
Vertical Machining Center
X Axis Travel: 20"
Y Axis Travel: 14"
Z Axis Travel: 18"
Pallets, Number of: 2
Pallets Size: 14" x 22"
Spindle Speed: 15,000 rpm
Spindle Taper: BT40
Spindle Motor: 18 HP
Tool Changer Capacity: 24 ATC
Wired At: 200v-220v 3PH
Machine Weight: 15,000 LBS
-EQUIPPED WITH-
Fanuc 16iMB controls
High-pressure through-tool coolant
Dual pallets (pallet changer)
Printed and electronic manuals included
Jorgenson chip conveyor
Torit Dryflo mist collector
Tooling and vises not included (but we could include them)
Has Fanuc data server board option (can connect to network)
