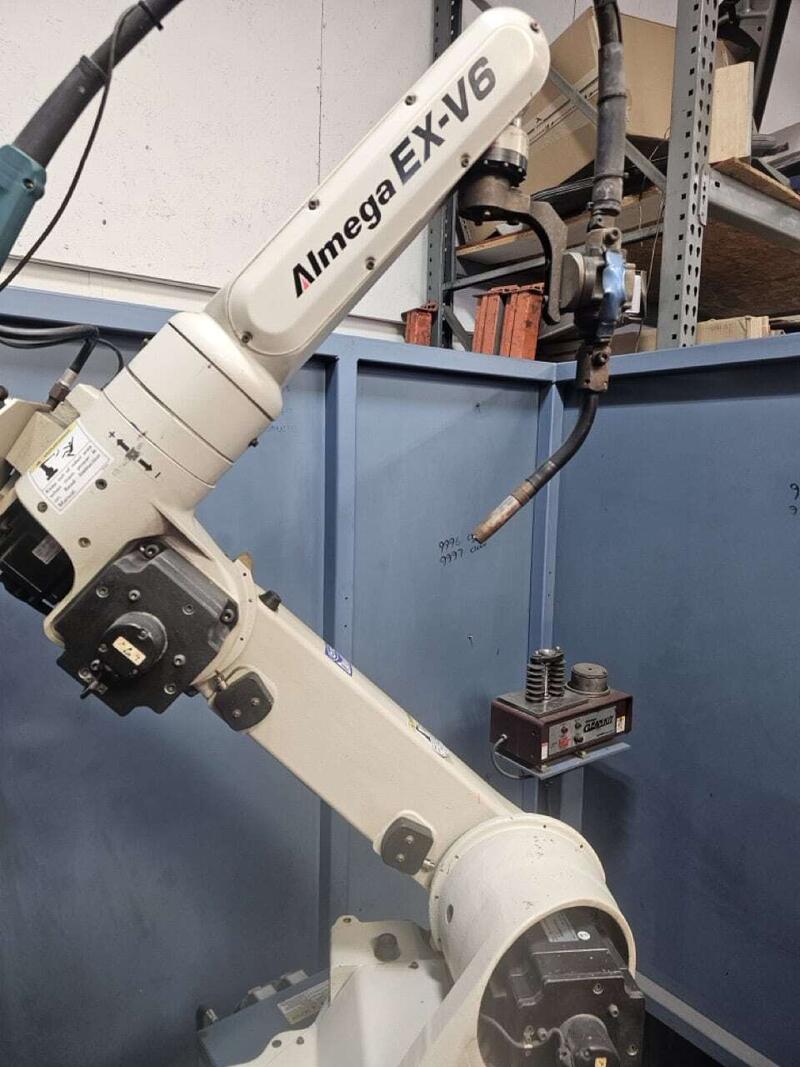

2002 OTC Almega EX-V6

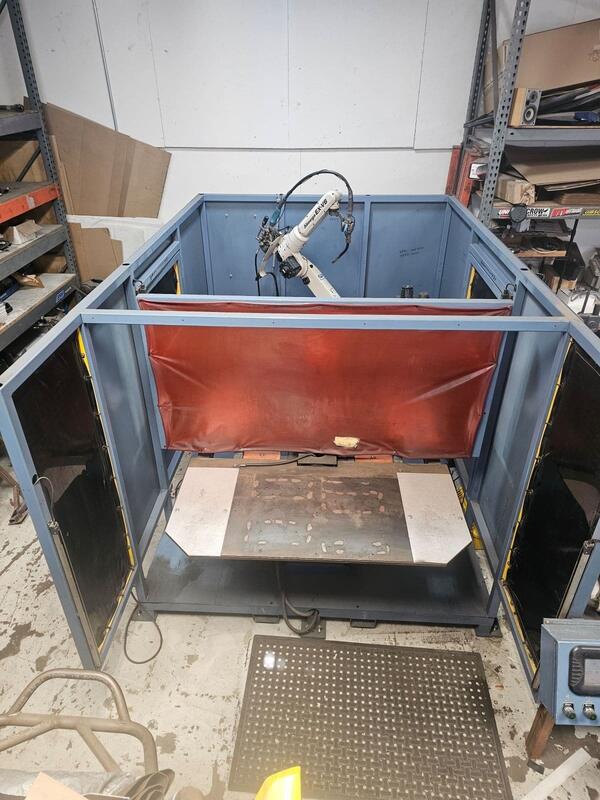

Robotic Welding Cell
Payload: Maximum of 6 kg
Number of axes: 6
Motion speed: Axis 1: 150 °/s, Axis 2: 160 °/s, Axis 3: 170 °/s,
Axis 4: 340 °/s, Axis 5: 340 °/s, Axis 6: 520 °/s
Accuracy: ±0.08 mm
Horizontal arm reach: 1402 mm
Dimensions: 66 in long, 35 in wide, 67 in high, and weighs 940 lbs
-EQUIPPED WITH-

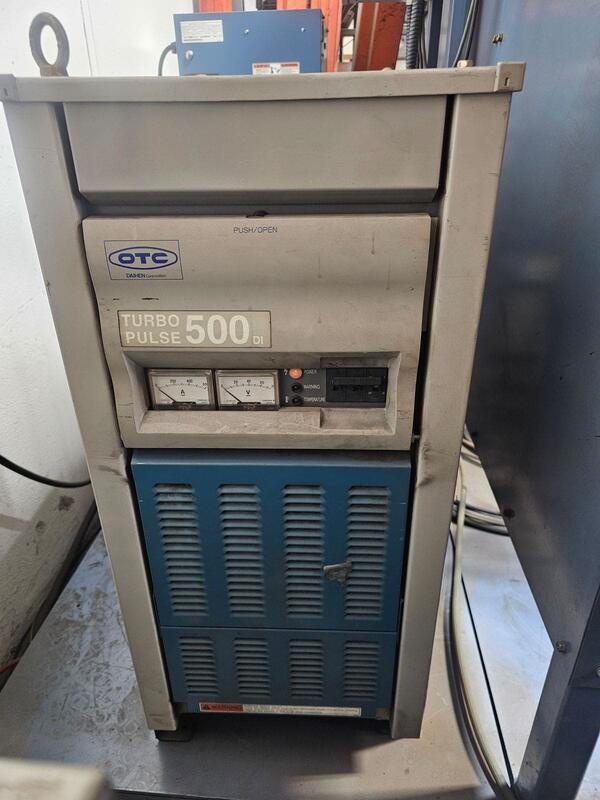

Turbo Pulse 500 DI
Duty Cycle: 500A @ 60% 387A @ 100%
Input Supply Voltage: 460V only
Input Phase: 3
Wired: 460V ONLY
Amps: 32.9
Output Voltage: 40A/16V To 500A /36V
