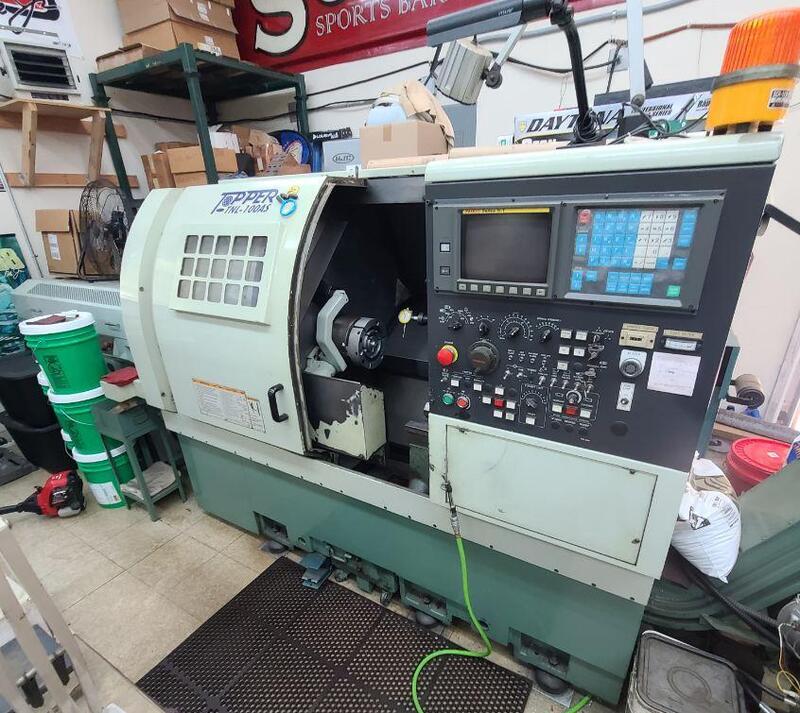

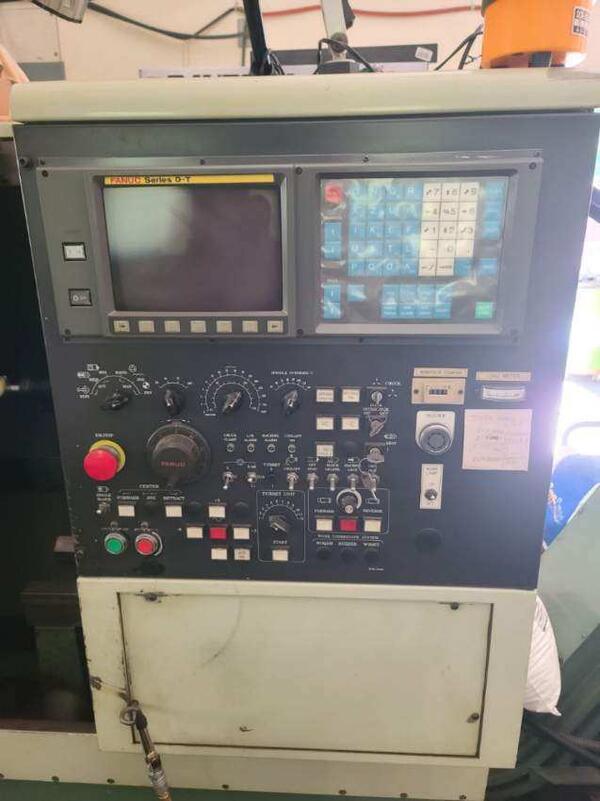

2002 Tongtai TOPPER TNL-100AS

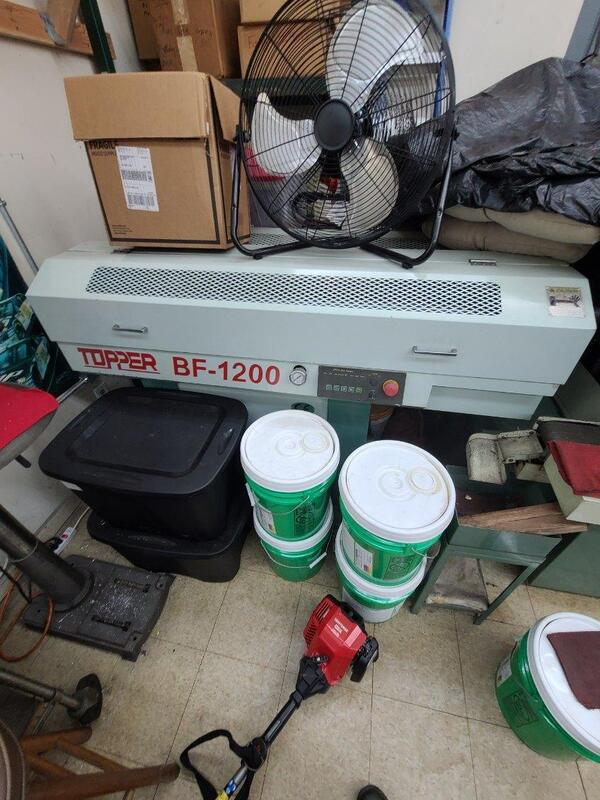

CNC Lathe w/ Barfeed & Live Tooling

Machine Specifications
Capacities:
Swing over bed/Front cover ................... 14.6"
Standard turning diameter .................... 10.39"
Swing over carriage .......................... 12.6"
Maximum cross travel (X axis) ................ 5.9"
Maximum longitudinal travel (Z axis) ......... 15.75"
Distance between centers ..................... 20.0"
Spindle:
Spindle Motor ................................ 20 HP
Spindle nose ................................. A2-6
Spindle RPM .................................. 5000
Hole through spindle ......................... 2.4"
Bar Capacity ................................. 1.7"
Spindle bearing diameter ..................... 3.9"
Spindle inside taper ......................... M.T. 5

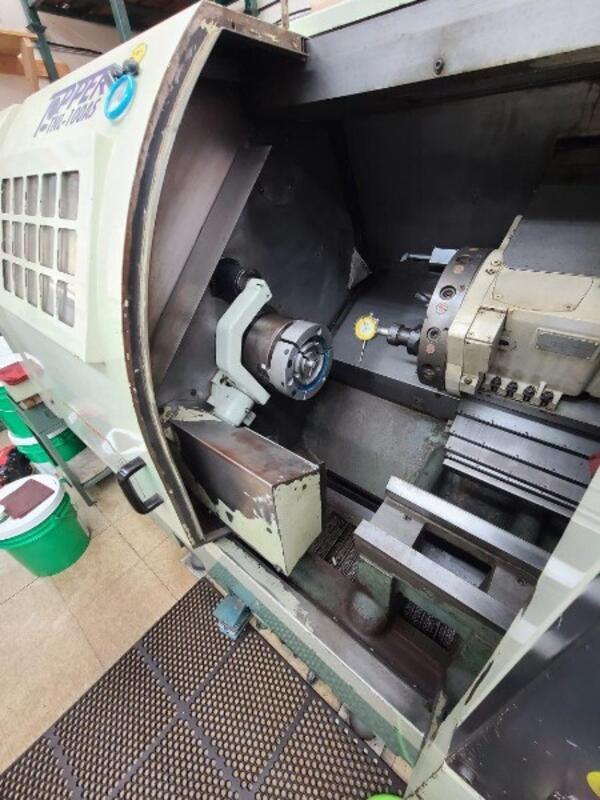

Turret:
Turret tool positions ........................ 12
Turret type .................................. Hydraulic
Tool mounting ................................ Block type
O.D. Tool shank size ......................... 1"
I.D. Tool shank size ......................... 1.25"
Index time ................................... 0.3 seconds

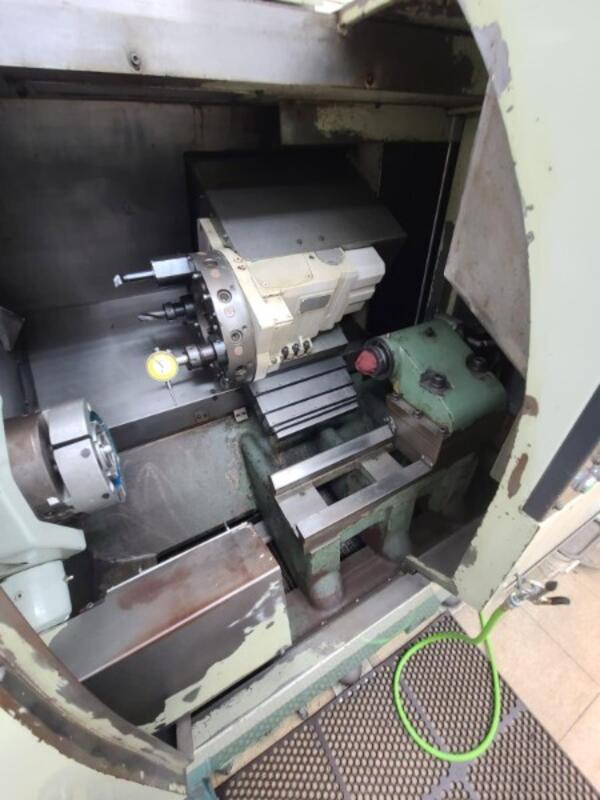

Tailstock:
Quill diameter of tailstock .................. 2.95"
Quill stroke of tailstock .................... 2.95"
Quill taper of tailstock ..................... M.T. 4
Tailstock body travel ........................ 15.7"
Ballscrews and axis motors:
Z axis ballscrew diameter .................... 32mm (1.25") x 12 pitch
X axis ballscrew diameter .................... 32mm (1.25") x 10 pitch
Ballscrew type ............................... Class 3 double nut pre-loaded
Ballscrew mounting type ...................... Pre-tensioned
X-Z servo motor HP ........................... X 1.33HP, Z 1.33HP
Servo motor mounting ......................... Direct coupled
Feeds:
Rapid Traverse Rate X,Z ...................... 944,1181 IPM
Cutting feed rate ............................ 0.0001 - 19.7 IPR
Positioning accuracy ......................... +/- .0001" full stroke
General:
Coolant tank capacity ........................ 30 gallons
Coolant pump motor ........................... .5 HP
Machine Weight ............................... 7,700 LBS
Floor Space .................................. 119" X 57" x 66"
Machine Power Source ......................... 208/220 Volts, 3 Phase 75A
Hydraulic pump motor ......................... 2HP

-EQUIPPED WITH-
