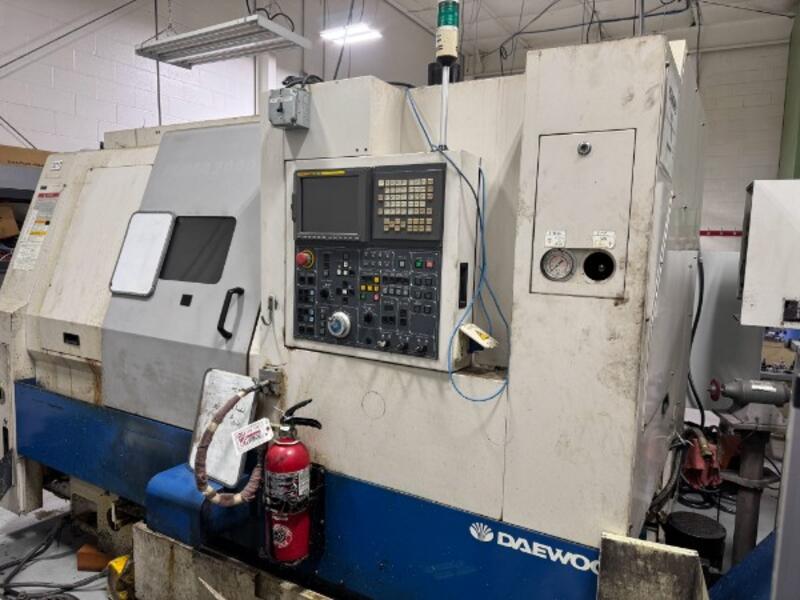

2003 Daewoo PUMA 2000SY
CNC Turning Center
Max Turning Diameter: 12.99″
Swing Over Bed: 23.62″
Swing over the Saddle: 21.65″
Max Turning Length: 20.07″
Max Bar Capacity: 2.55″
X Axis Travel: 9.84″
Z Axis Travel: 22.83″
Y Axis Travel: 3.93″ (+ 1.96″ – 1.96″)
B Axis Travel: 22.83″ (Sub Spindle)
C Axis: 360° (0.001°) Both Spindle
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Rapid Traverse Y Axis: 295 IPM
Rapid Traverse B Axis: 787 IPM
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Bore: 2.99″
Sub Spindle Bore: 1.77″
Main Spindle Speed: 45-4500 RPM
Sub Spindle Speed: 60-6,000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 10 HP
Capacity: 12 Live Stations
Turret Index Time: 0.1 Second
Live Tool Speed: 60-6,000 RPM
Live Tool Spindle Power: 5 HP
Power Source: 50.71 kva, 220v / 3-Phase / 60 Hz
Overall Dimensions: 123″ x 67″ x 81″ High
Overall Dimensions: 136″ x 67″ x 72″ High with Chip Conveyor
Weight: 10,700 lbs
-EQUIPPED WITH-
Fanuc 18i-TB CNC Control

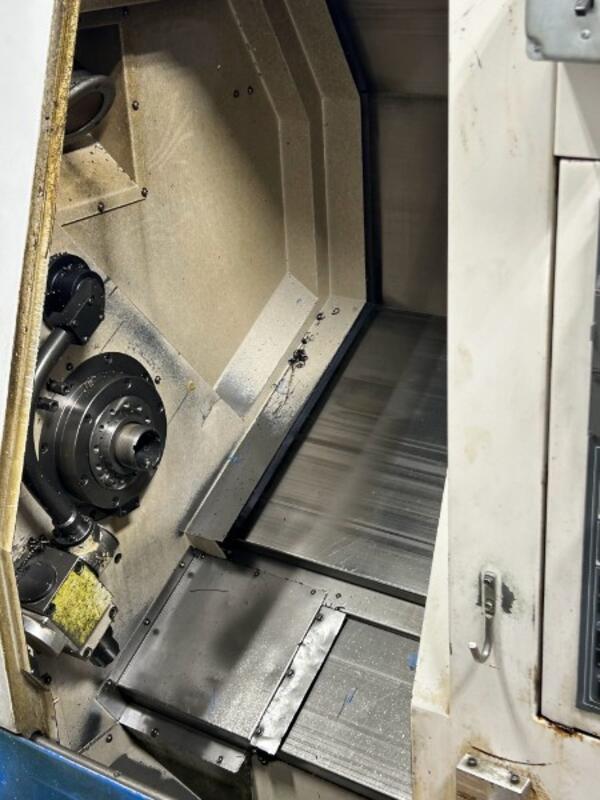

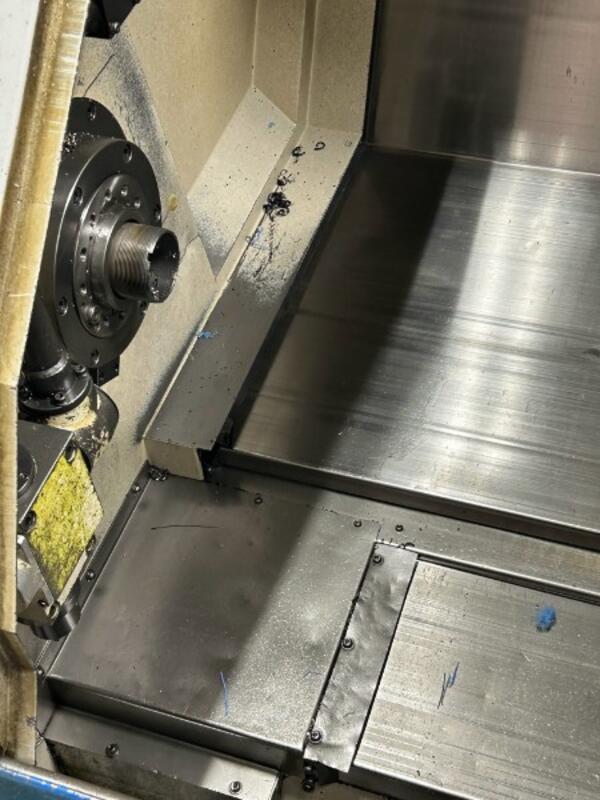

Collet Chuck on Main Spindle

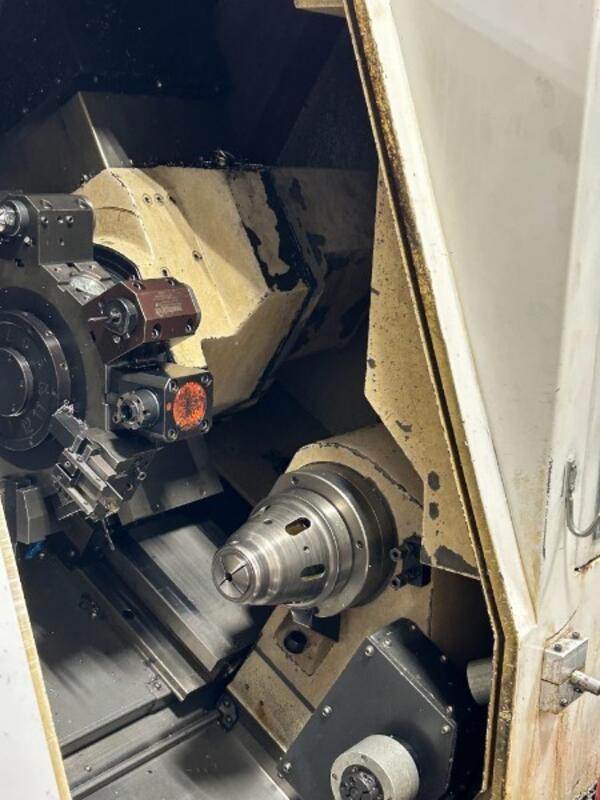

Collet Chuck on Sub Spindle
Servo Controlled Full C-Axis on Both Spindles

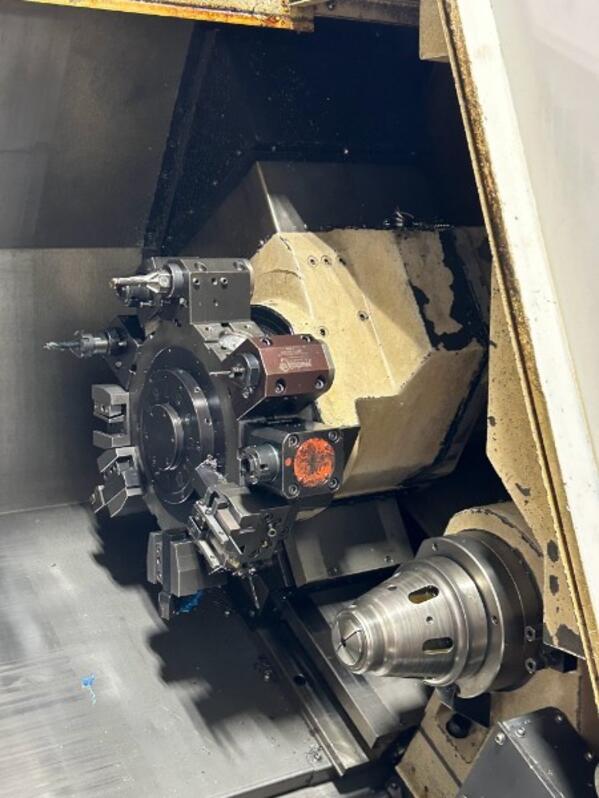

12-Station Turret – Live / Rotary Tools

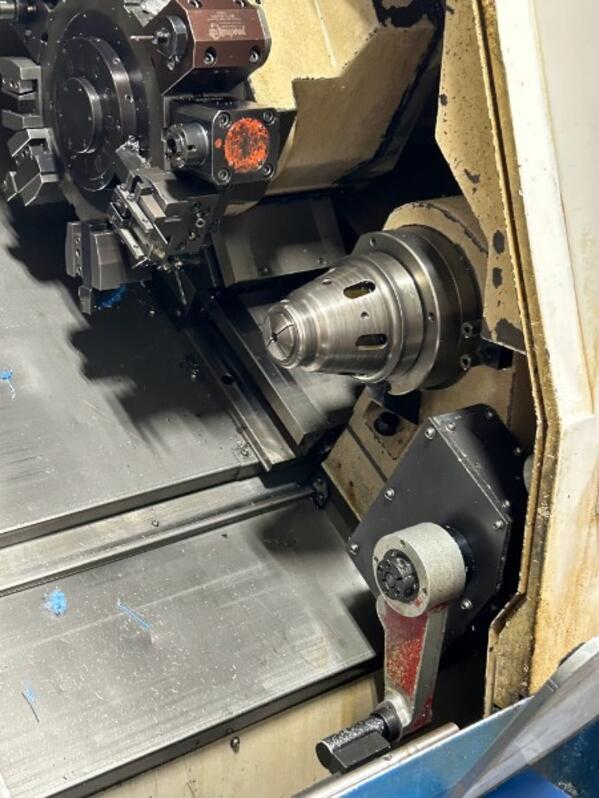

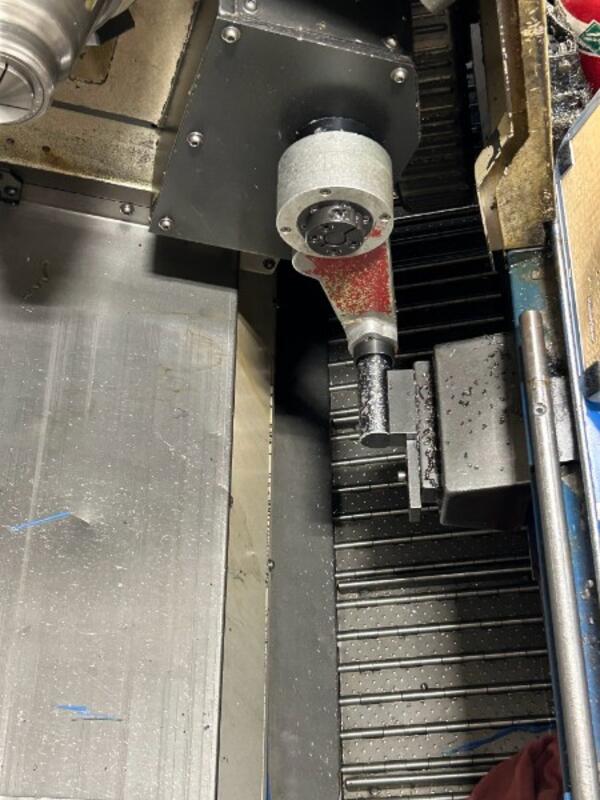

Tool Presetter
Parts Catcher
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
Turbo Systems Chip Conveyor
Comes with Live Tools & Static Tool Holders
Spindle Orientation
Books & Manuals
Levelling Pads
Daewoo Doosan
