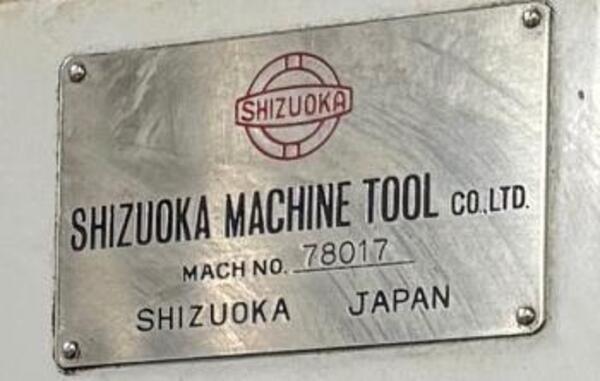

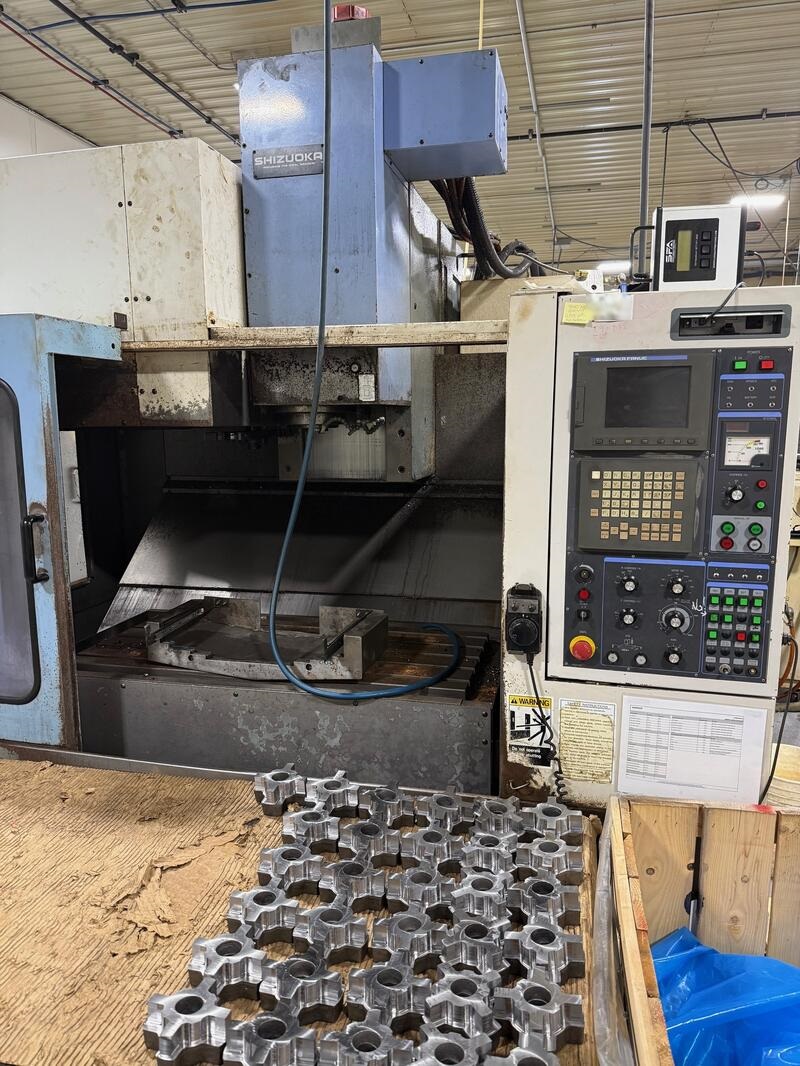

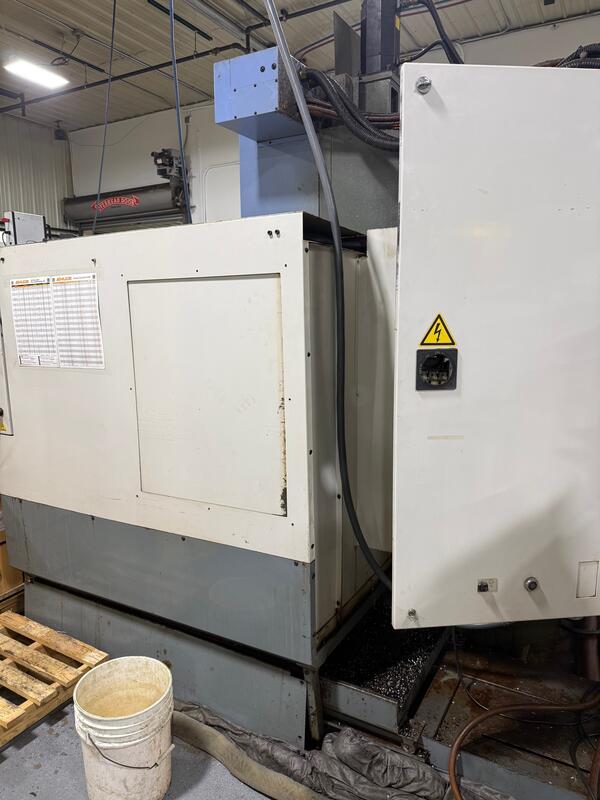

2003 Shizuoka SV-4024
Vertical Machining Center
TABLE SIZE: 47″ x 27.6″
MAXIMUM PALLET LOAD: 2,205 LBS
SPINDLE NOSE TO PALLET TOP: 5.9″ – 26″
X AXIS TRAVEL: 40.2″
Y AXIS TRAVEL: 24″
Z AXIS TRAVEL: 20.1″
RAPID TRAVERSE RATE X & Y AXIS: 1575 IPM
CUTTING FEED RATE: .4 – 630 IPM
SPINDLE TAPER: CAT 40
SPINDLE SPEEDS: 100 – 12,000 RPM
SPINDLE MOTOR: 30 HP
TOOL CHANGER CAPACITY: 24 (SWING-ARM CAM)
SLIDING DOOR OPEN WIDTH: 50″
MAXIMUM TOOL WEIGHT: 17.6 LBS
APPROX. SHIPPING WEIGHT: 17,000 LBS
APPROX. SHIPPING DIMENSIONS: 100″L X 103″W X 117″H
-EQUIPPED WITH-
FANUC 18i-M CNC CONTROL w/ 9″ MONITOR
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING)

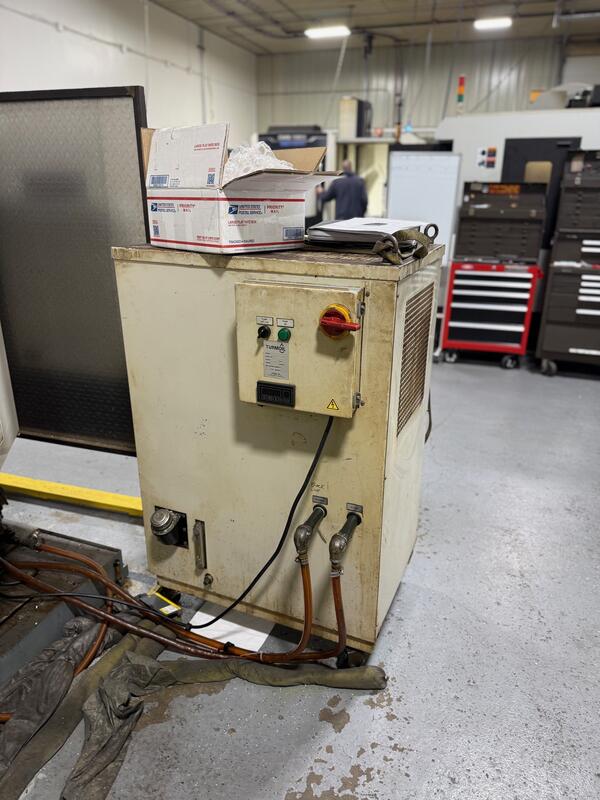

THRU-SPINDLE COOLANT KAMUI SPINDLE & OIL CHILLER
REMOTE PULSE GENERATOR HAND-WHEEL
SIDE MOUNTED AUTO-TOOL CHANGER (SWING-ARM CAM)
COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
RIGID BOX WAY CONSTRUCTION
30 HP HIGH SPEED SPINDLE
