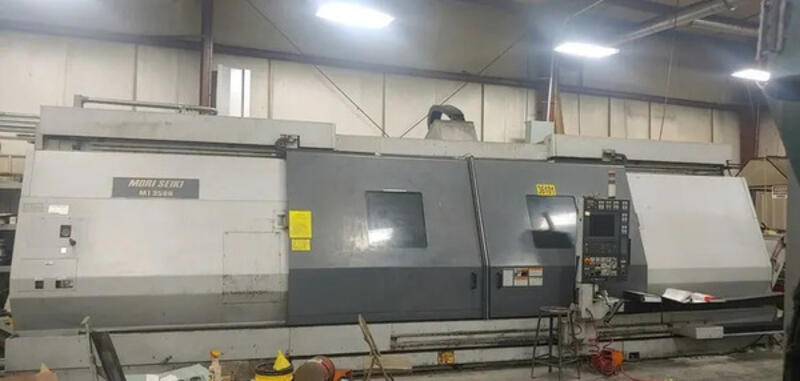

2005 Mori Seiki MT3500S
8-Axis CNC Turning Mill Center
Bar Capacity: 4"
Chuck Size: 12"
Spindle Speed: 3,000 RPM
Spindle Motor: 40 HP
Spindle Nose: A2-8
Sub Spindle Bar Capacity: 4"
Sub Spindle Chuck Size: 12"
Sub Spindle Motor: 20HP
Sub Spindle Nose: A2-8
Milling Spindle Speed: 8,000RPM
Sub Spindle Speed: 4,000RPM
B Axis Travel: 180°
X Axis Travel: 25"
Z Axis Travel: 125"
Rapid Rate Z Axis: 1,181 IPM

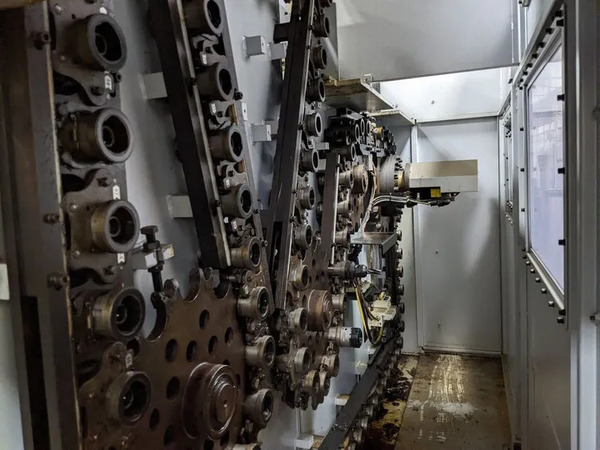

Turret Tools: 120 Station
Rapid Rate X Axis: 944 IPM
Max Turning Dia: 22"
Max Turning Length: 125"
Max Swing: 32"
Dimensions: 348" x 133" x 129"
Weight: 72,000 LBS
-EQUIPPED WITH-

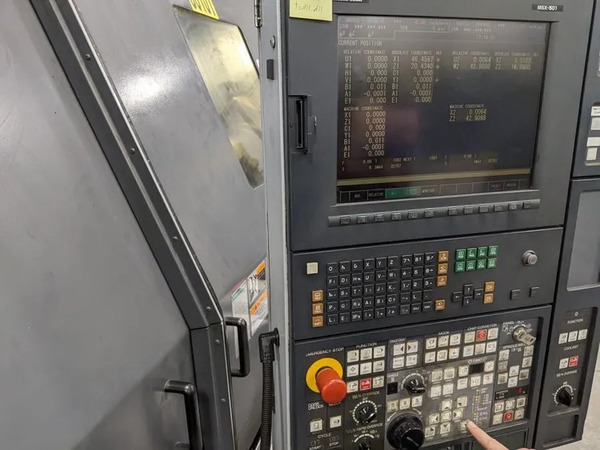

MSX-501 CNC Control

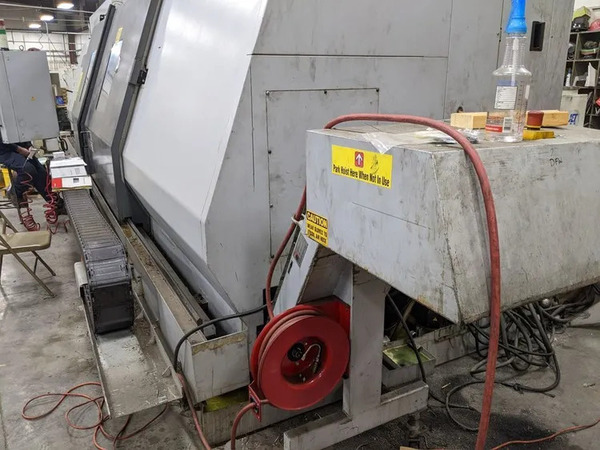

Chip Conveyor

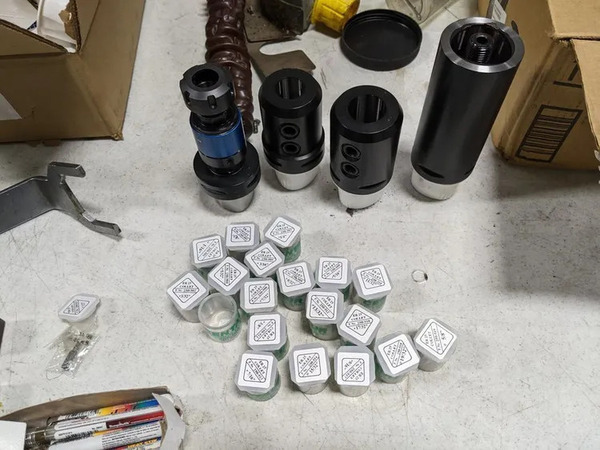

Live Tooling
Sub Spindle
Y Axis
5 Axis
12" Programmable Turn Through Steady Rest

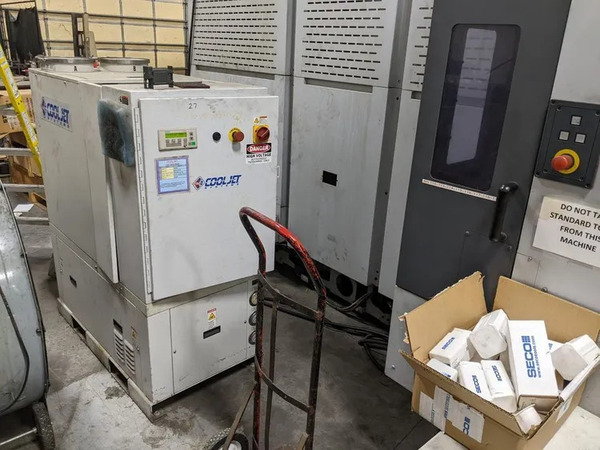

Cool Jet High Pressure Coolant System (1000 PSI)
Auto Door
Thru-Spindle Coolant
