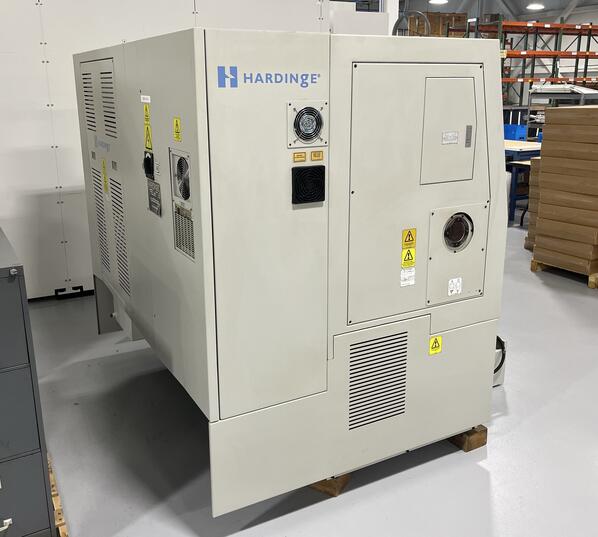

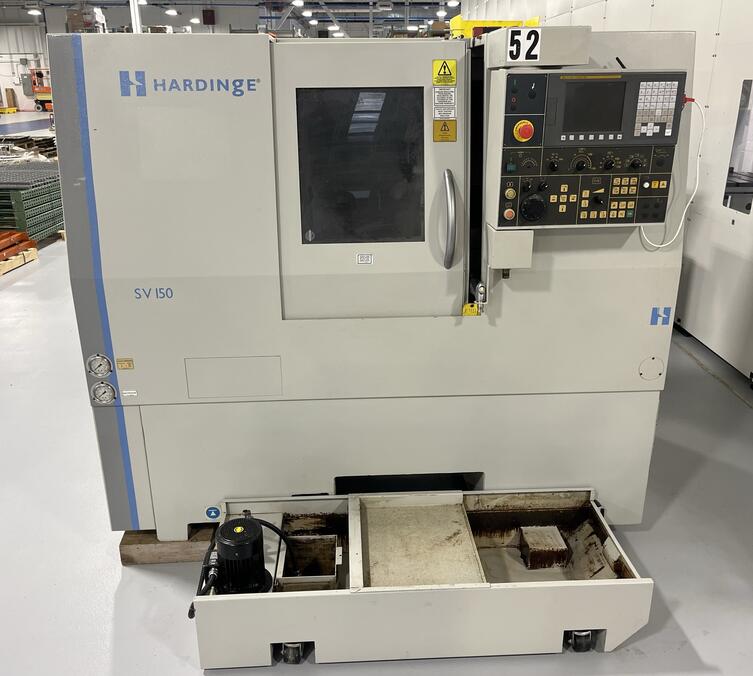

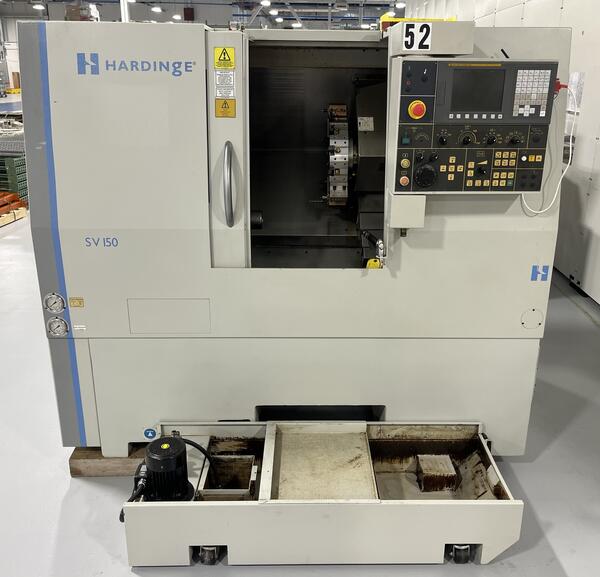

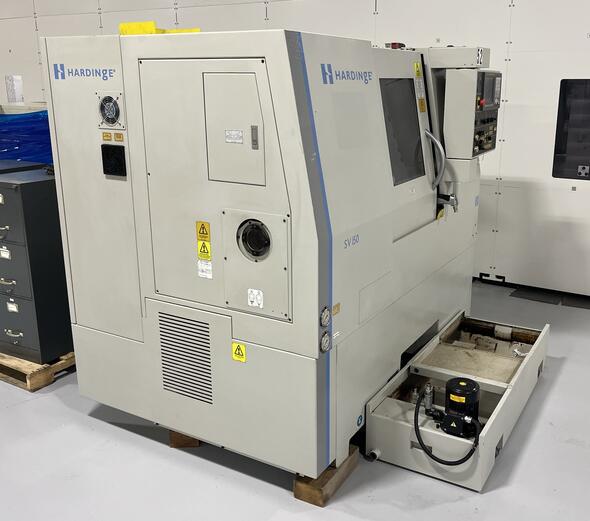

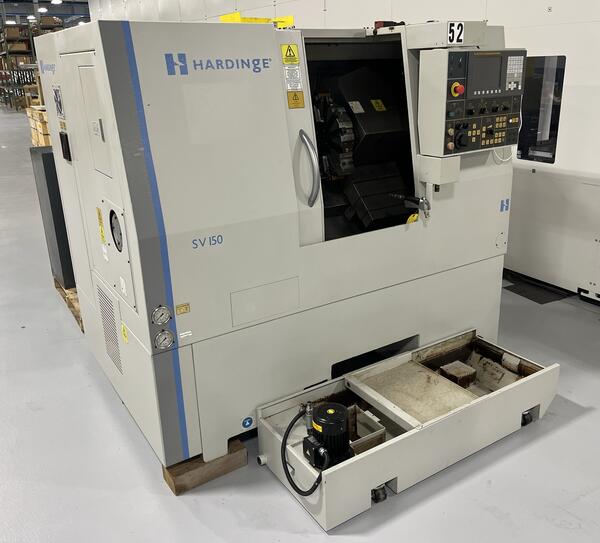

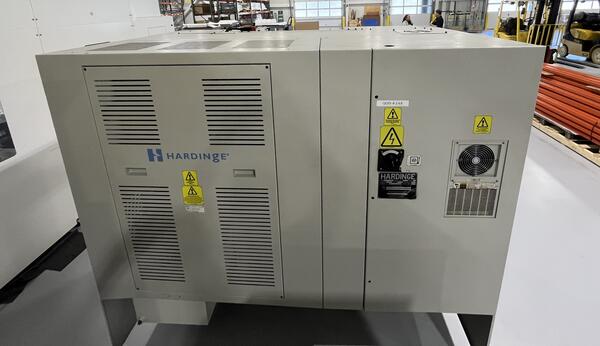

2008 Hardinge SV-150
CNC Turning Center
Max. swing: 18"
Max. turning diameter: 11.1"
Max. machining length: 16"
Max. bar capacity: 1.77"
Spindle RPM: 6,000
Spindle nose: A2-5
Spindle HP: 20
X travel: 6.02"
Z travel: 16"
Square tool shank size: .750"
Round tool shank size: 1.250"
Traverse rates on X & Z axis: 1,181 ipm
Tail stock base travel: 13.42"
Tail stock taper: MT #4
Dimensions: 118" x 61" x 78" x 6,740 lbs.
-EQUIPPED WITH-
Fanuc SV CNC Control
12 Station Turret
