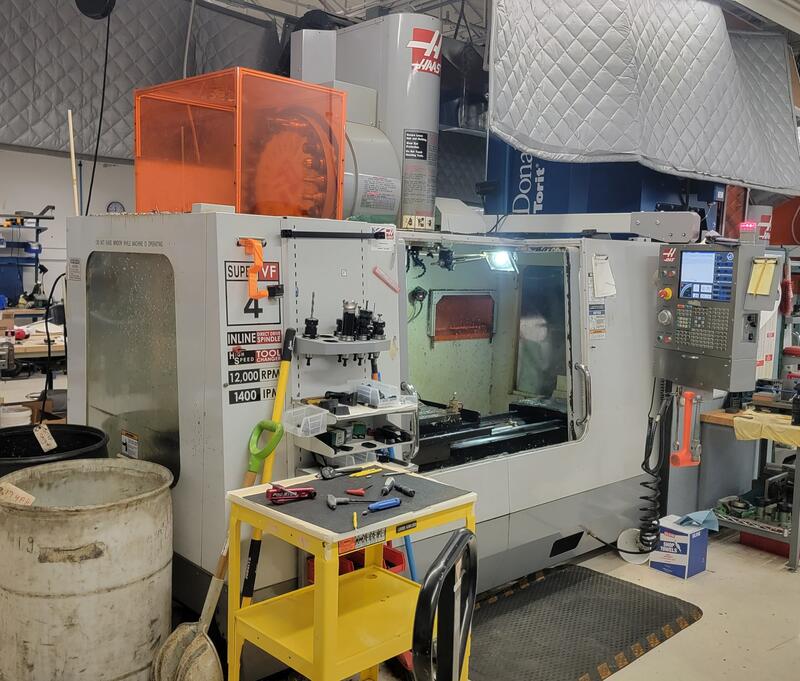

2009 Haas VF-4SS

Vertical Machining Center

X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 52" x 18"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque: 90 ft-lbf @ 2000 rpm
Max Cutting: 833 ipm
T-Slot Width: 0.630"
T-Slot Center Distance: 3.15"
Max Thrust X, Y: 3085 lbf
Max Thrust Z:3925 lbf
Max Weight on Table (evenly distributed): 1750 lb
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS
