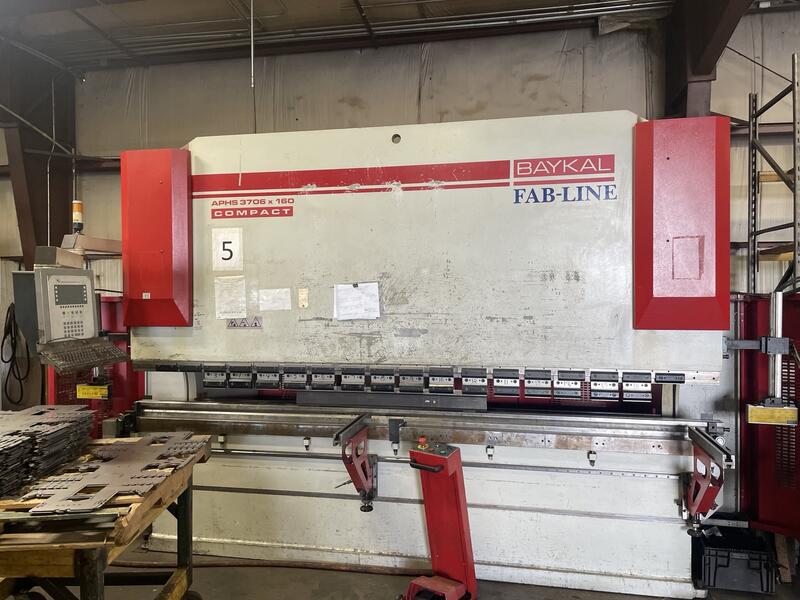

2011 Baykal APHS 3706x160
CNC Press Brake
Tonnage: 176 T
Overall Length: 145.66″
Between Housings: 127.95″
Stroke: 10.23″
Dimensions: 4.75 mL x 1.85 mW x 2.66 mH
Weight: 10,700 kg

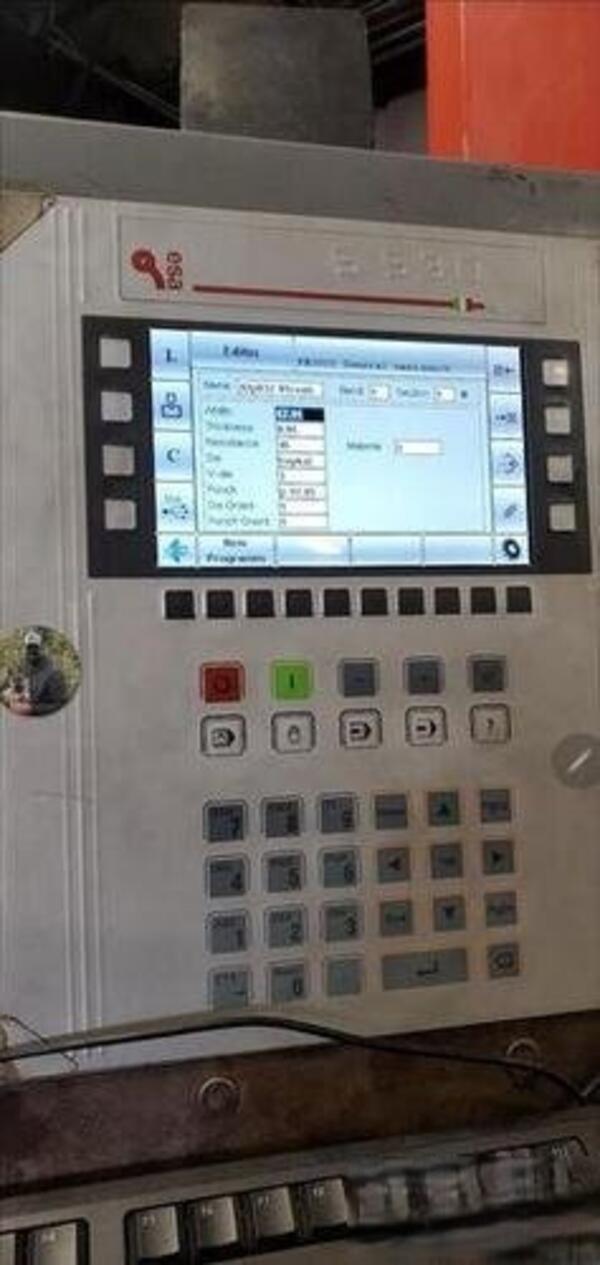

Control: ESA S530 4-Axis CNC Control
-EQUIPPED WITH-
Key Specifications & Features
Model: APHS-C (Compact Hydraulic Press Brake)
Bending Capacity: 160 tons
Working Width: 3,700 mm
Control System: Delem DA-56s

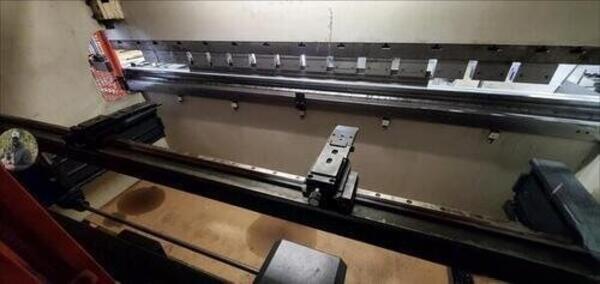

Backgauge: 4-axis, controlled by an AC servo motor for high speed and accuracy
Frame: Rigid, welded monoblock steel frame to minimize deflection under load
Cylinders: Downstroke synchronized, high-quality forged cylinders
Ram Accuracy: +/- .0004″ (0.01mm) repeatability
Power: 15 kW main motor
Weight: 10,700 kg
Dimensions: 4.75 m x 1.85 m x 2.66 m (Length x Width x Height)


REQUEST A QUOTE FOR THIS MACHINE
