2011 Southwestern Industries TRAK TRL 2460SX
CNC Tool Room Lathe
Height of Centers: 12"
Distance between centers: 60"
Swing over bed: 24"
Swing over saddle wings: 24"
Swing over cross slide: 14.5"
Cross slide travel: 12.5"
Tool section max: 11"
Coolant: 11 gal.
Bed Width: 15.75"
Bed Height: 12-5/8"
Spindle Nose: D1-8
Spindle through hole: 4.09"
Spindle Taper: MT #8
Taper in reduction sleeve: MT #5
Spindle diameter front bearing: 5.51"
Number of Spindle Speed Ranges: 2
Spindle Speed Range (RPM): 40-670, 100-1800
Spindle HP: 15
Dimensions LxWxH: 117 x 59 x 77"
Machine Weight: 6200 lbs.
Tail stock quill travel: 6.88"
Quill diameter: 3"
Quill taper hole: MT#5
Maximum rapid 250 ipm
-EQUIPPED WITH-

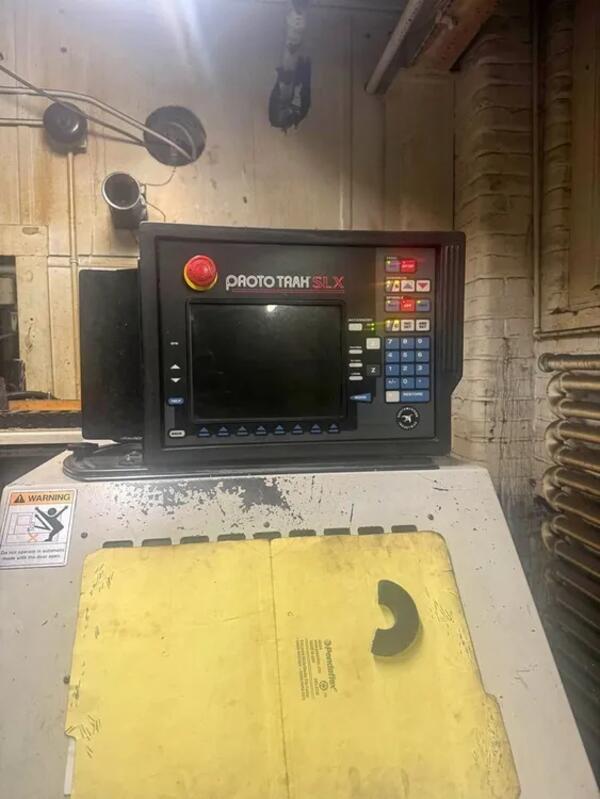

Proto Trak SLX CNC Control
High-speed angular contact bearings
2 speed tailstock quill
Dynamic spindle motor brake
Direct drive headstock - no gear shifting
Quiet operation
Dual sliding doors to control chips and coolant with one door removable
Meehanite cast monolithic base
Heavy ribbed base construction
Bedways hardened and ground
Sliding surfaces Turcite coated
Dovetails on cross slide, V-ways on saddle
Adjustable saddle gibs
