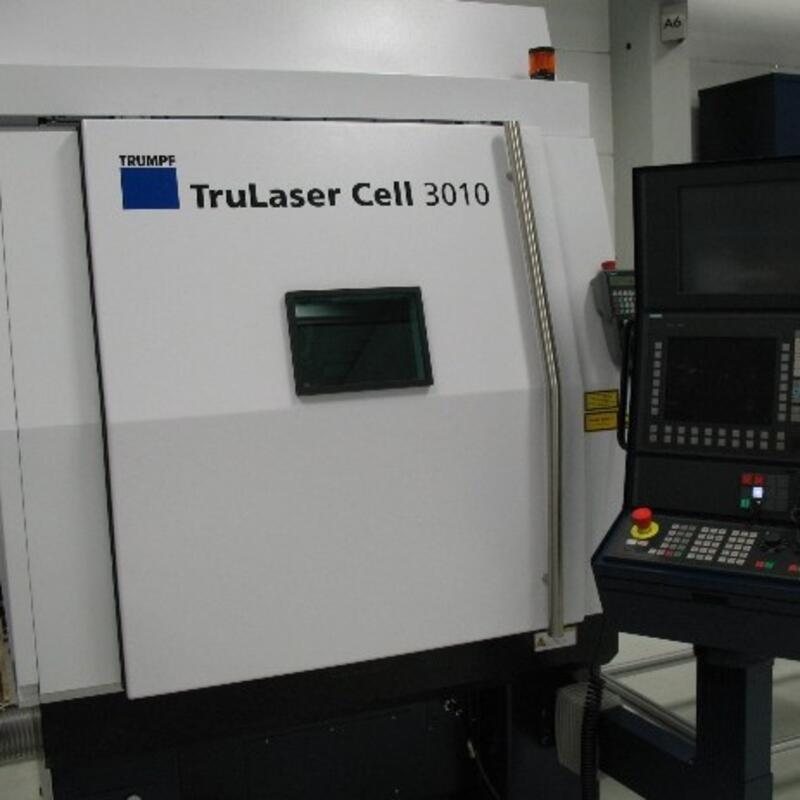

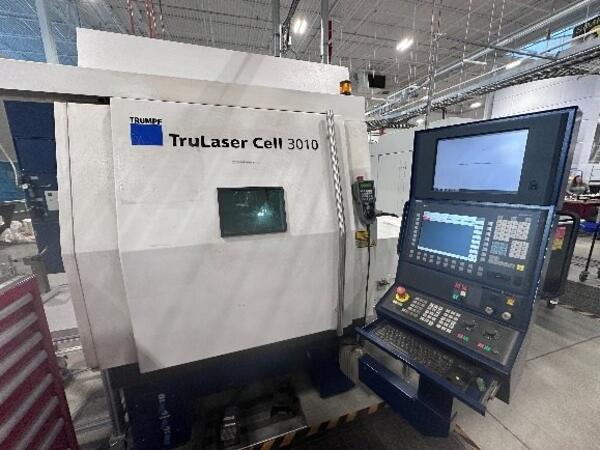

2012 Trumpf TRULASER CELL3010
CNC Laser Cutting System
Sheet Size: 39" x 118"
Wattage: 3000 w
IPM: 5200 ipm
X Axis Travel: 118"
Y Axis Travel: 39"
Z Axis Travel: 20"
Dimensions: 394" x 315" x 135"
Machine Weight: 19,800 lbs
-EQUIPPED WITH-
LASER SOURCE: high-power solid-state disk laser (ND-YAG), continuous-wave (CW) mode,
1030nm
POWER: 11kW (Power range of Laser module 60W-2kW)
BEAM HOURS: approx. 40T hours
CONTROL VERSION: Sinumerik 840D/DE VERSION K

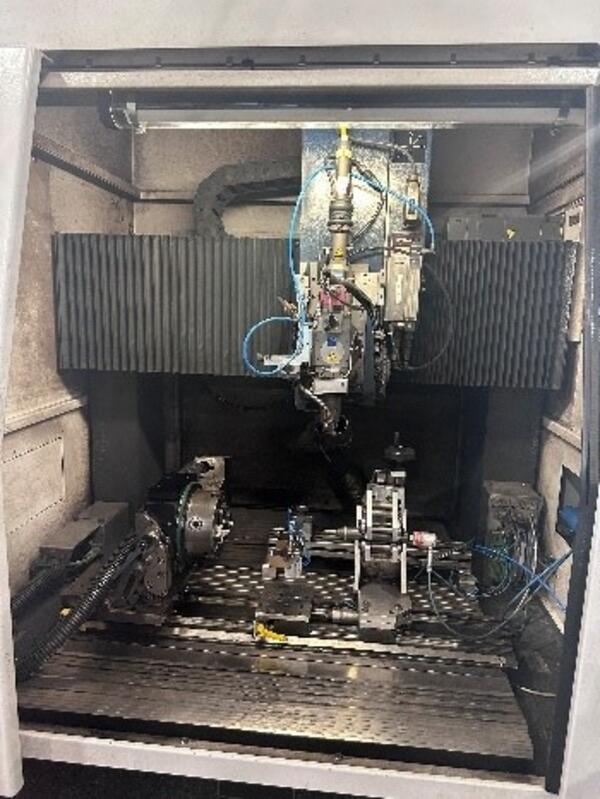

INSTALLED OPTICS/ WELDING HEAD: Rotary head

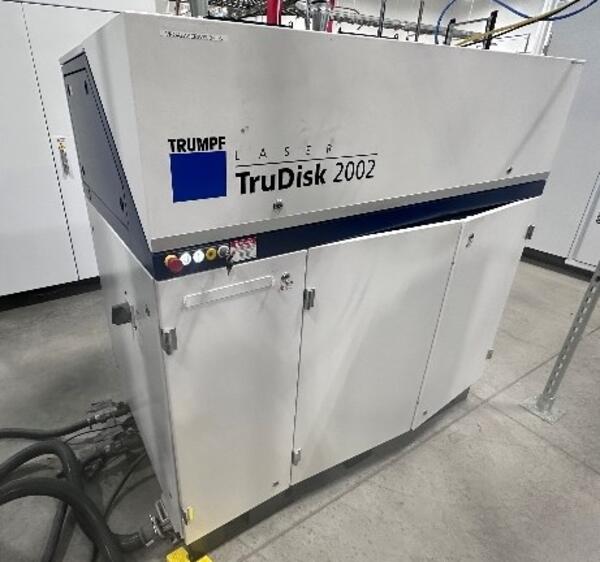

MACHINE WEIGHT: Trulaser Cell 3010: 2,4t (aprox. 5.300lbs), Trudisk 2002: 500Kg (1220lbs),

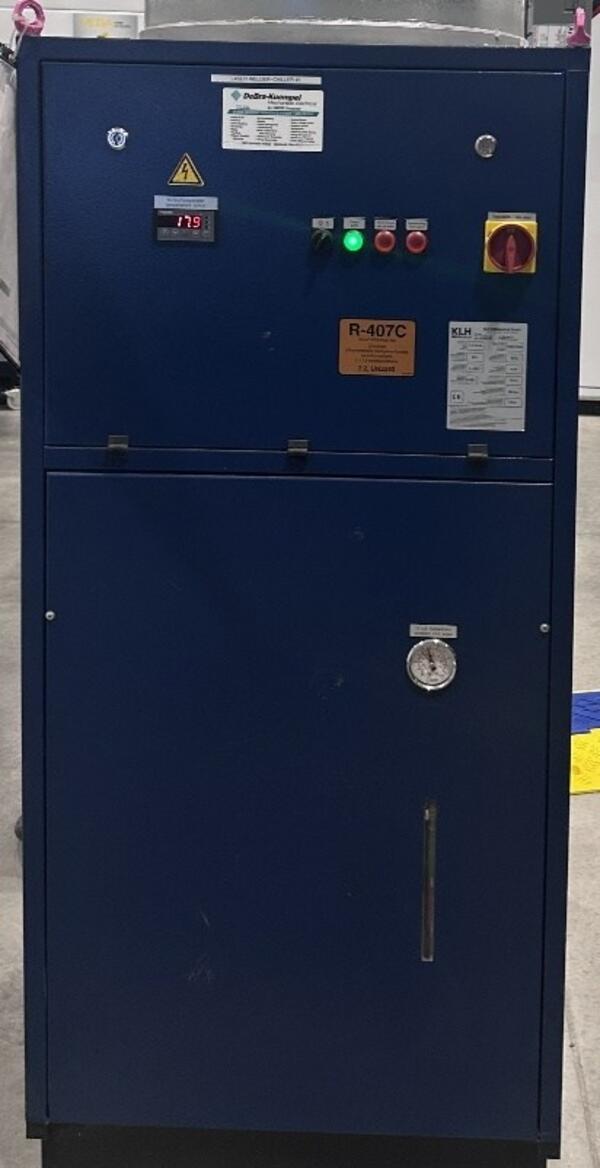

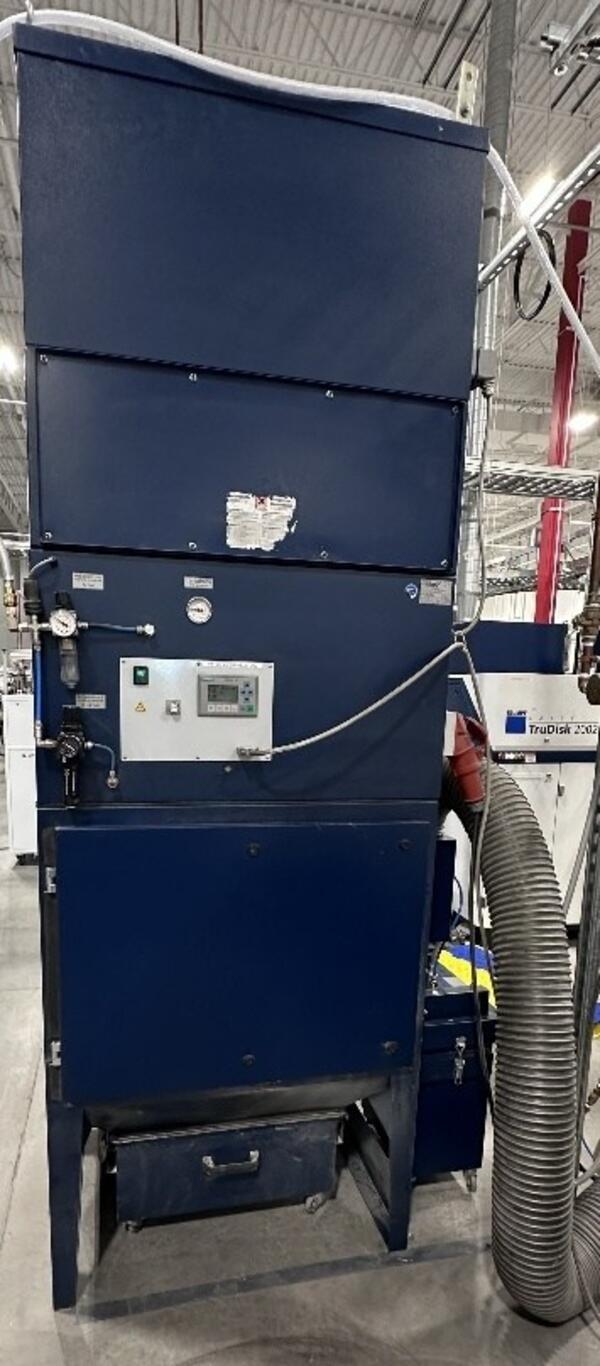

Fuchs Filter unit: approx. 300Kg (661lbs), KLT-Chiller: approx. 500Kg (1100lbs)



REQUEST A QUOTE FOR THIS MACHINE
