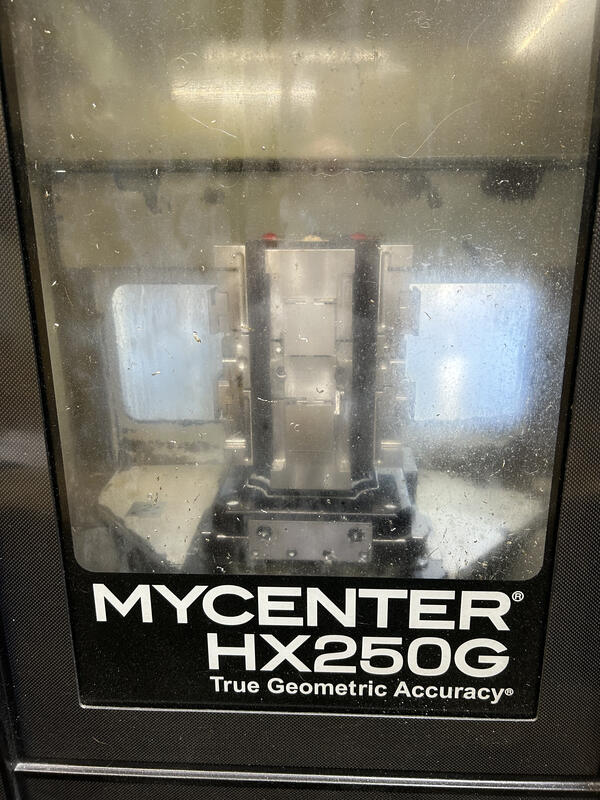

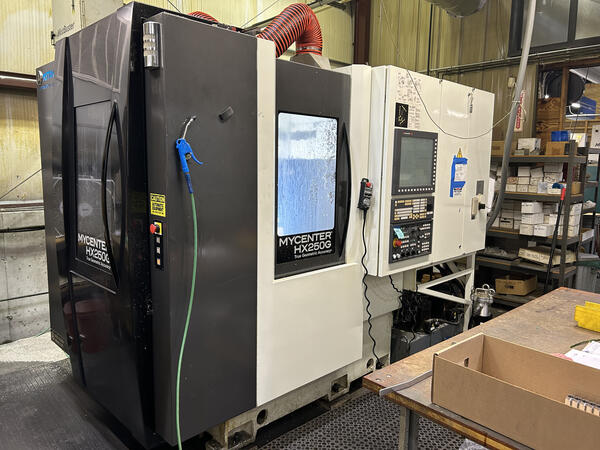

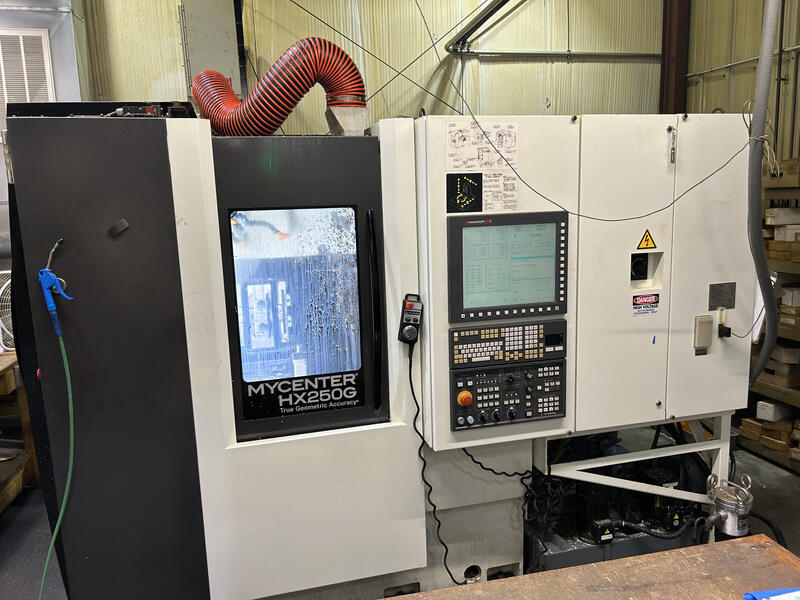

2014 Kitamura HX-250G

Horizontal Machining Center

X Axis Travel: 12″
Y Axis Travel: 12″
Z Axis Travel: 13″
B Axis Rotation: 0.001° ( Full 4th )
Table Center to Spindle Nose (Min – Max): 2.36″ – 15.35″
Rapid Traverse Rate: 2362 Inch Per Minute
Cutting Feedrate: 2362 Inch Per Minute
Table Length: 10″
Table Width: 10″
Max Weight on Table: 220 lbs
Max Workpiece Height: 15.75″
Max Workpiece Diameter: 13.78″
Automatic Pallet Change Time: 7.9 Seconds
Spindle Taper: BT-30
Spindle Speed: 15,000 RPM
Spindle Motor: 15 HP

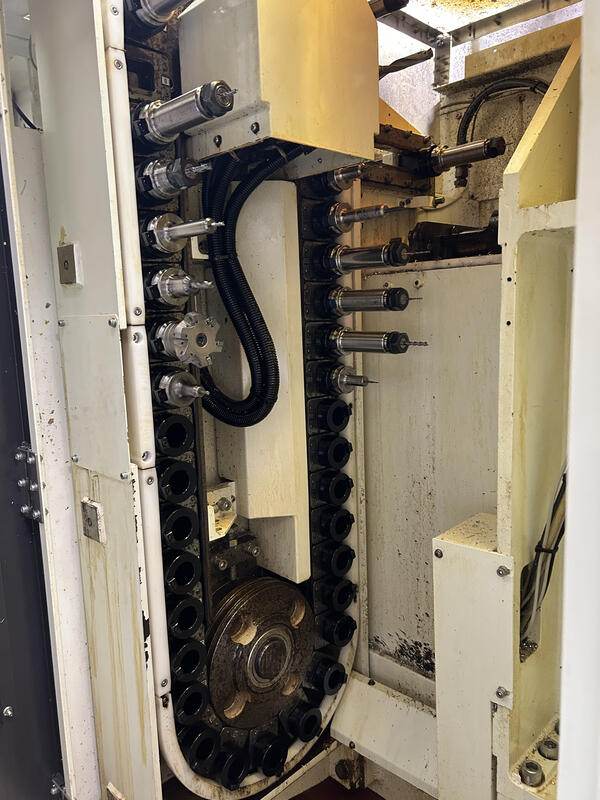

Tool Changer: 40 ATC
Machine Dimensions: 115″ X 116″ x 89″H
Machine Weight: 12,000 LBS
