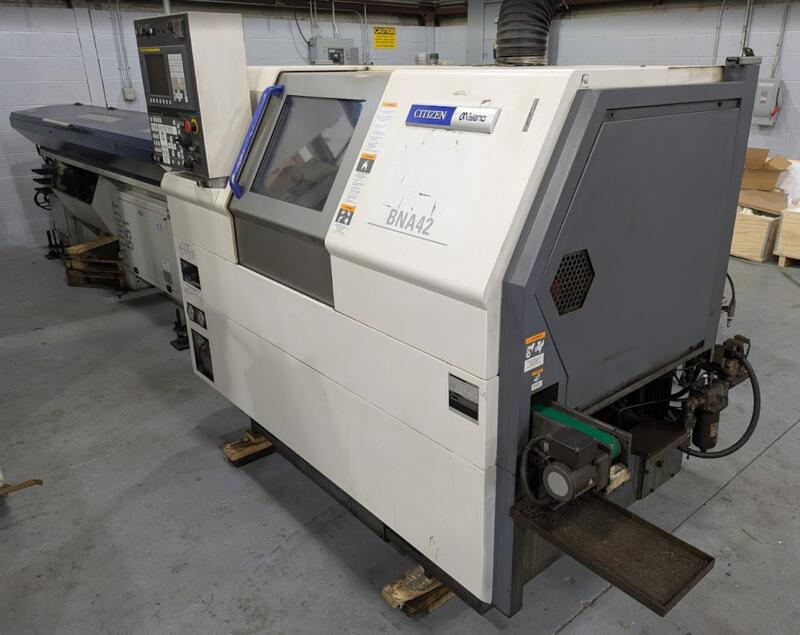

2018 Citizen BNA-42S2
CNC Swiss Type Lathe
Chuck Size: 5"
Spindle Speed: 5,000 RPM
Spindle Motor: 5.53 HP
maximum bar diameter SP1: 42mm
maximum bar diameter SP2: 34mm
standard machining length: 100mm
number of spindles: 2
draw tube diameter SP1: 43mm
draw tube diameter SP2: 30mm
rapid feed rate X1 axis: 20m/min
rapid feed rate Z1 axis: 20m/min
rapid feed rate B axis: 20m/min
live tool motor: 2.8/1.0kW (16 Nm)
-EQUIPPED WITH-
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis

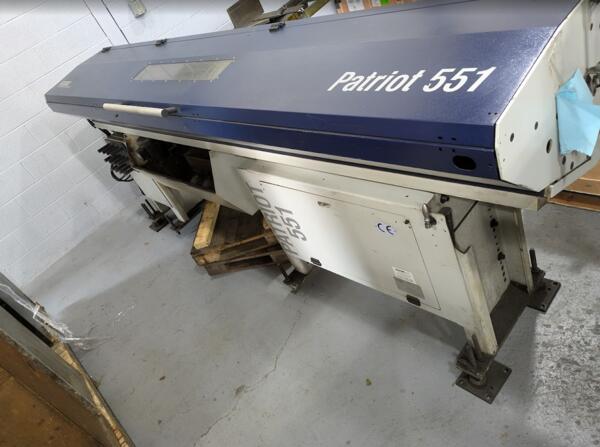

Edge Patriot 551 Bar Feeder
Medium Pressure Coolant System
Patrol Light
Parts Conveyor
Rigid Tapping
