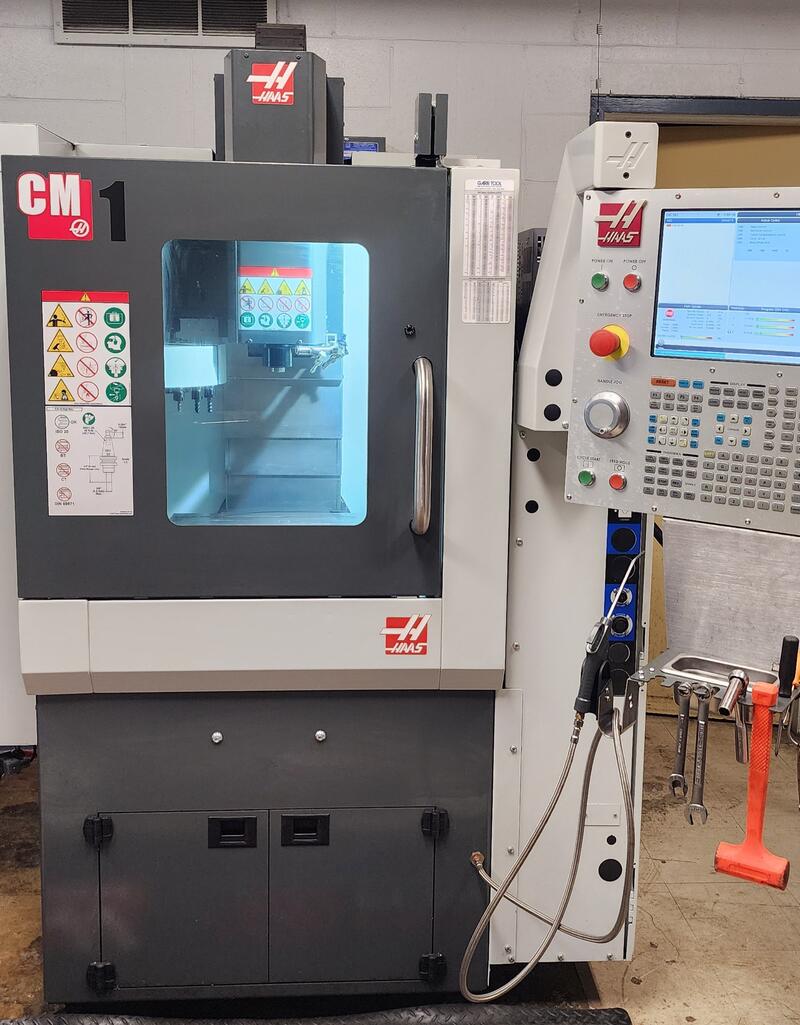

2019 Haas CM1
Vertical Machining Center
X Axis Travel: 12"
Y Axis Travel: 10"
Z Axis Travel: 12"
Table Size: 20" x 10"
Table Load: 150 LBS
Spindle Motor: 5 HP
Spindle Speed: 30,000 RPM
Spindle Taper: ISO 20
Tool Changer: 20 ATC
Machine Dimensions: 79" x 58" x 86"H
Machine Weight: 2,100 LBS

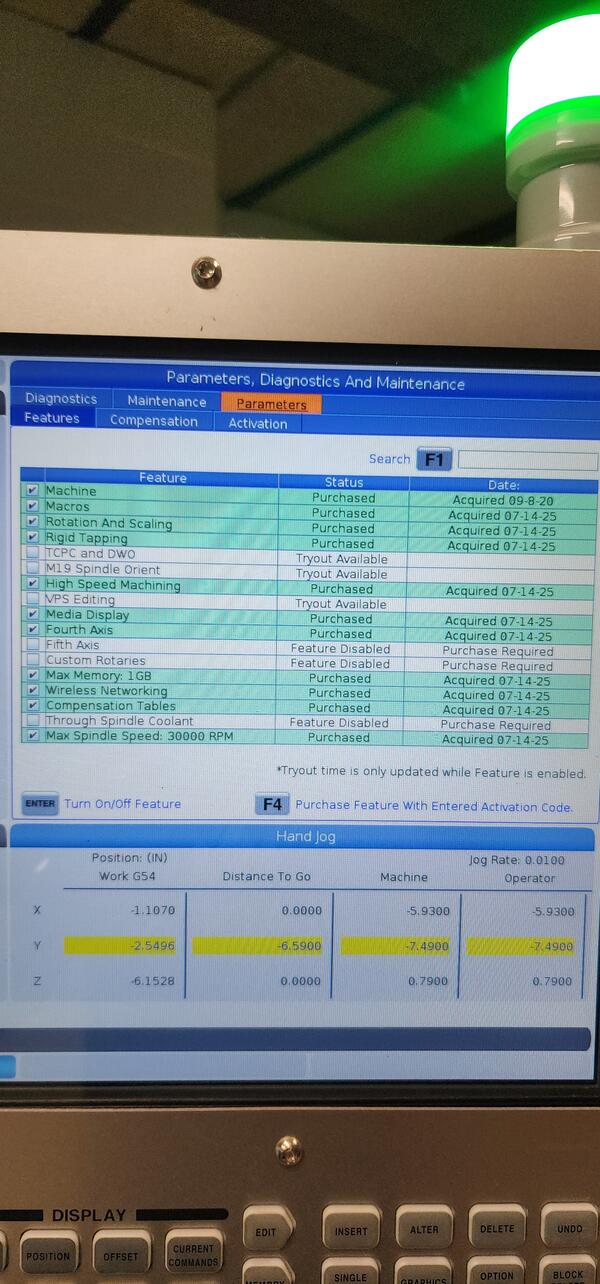

-EQUIPPED WITH-
Haas CNC Control

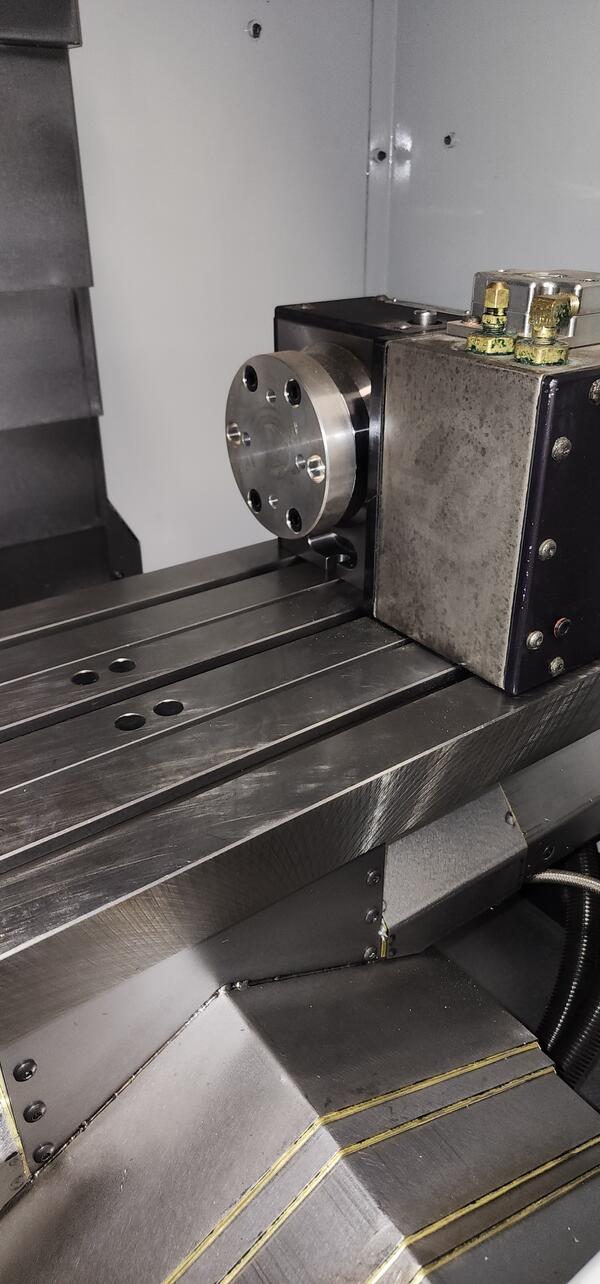

HRT-100 Rotary Table
Macros
Rotation and Scaling
Rigid Tapping
HSM – High Speed Machining
Media Display
Max Memory: 1GB
Wireless Networking
Compensation Tables
