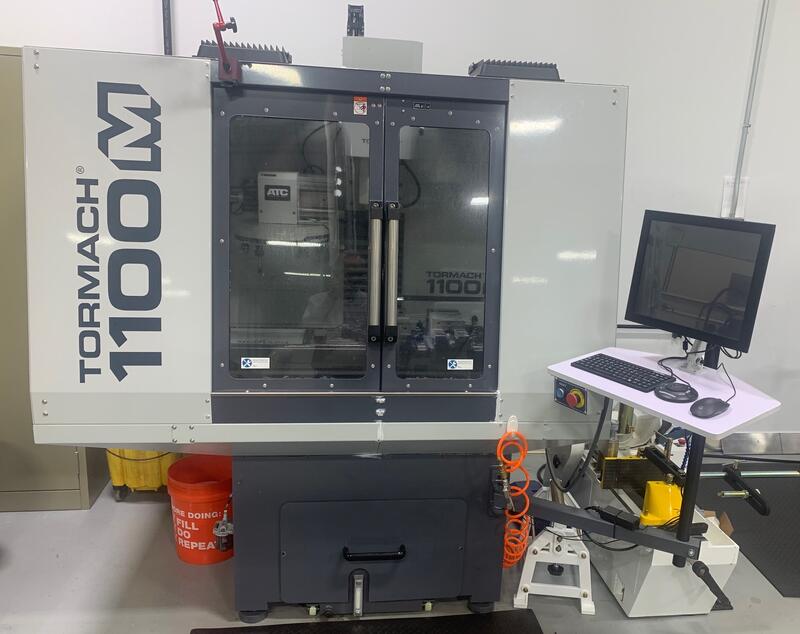

2019 Tormach 1100M
Vertical Machining Center
Table Size: 34 in. × 9-1/2 in. (863.60 mm x 241.30 mm)
Table Slots: 5/8 in.– Three slots (15.875 mm)
Spindle Nose to Table Max Clearance: 18 in. (457 mm)
Spindle Centerline to Machine Column: 11 in. (279.40 mm)
Typical System Footprint: 69 in. × 56.5 in. (1753 mm x 1435 mm)
Overall System Height: 96 in. (2438 mm)
Typical System Weight: 1600 lb (726 kg)
Maximum Weight on Table: 500 lbs (227 kg)
X-Axis Travel: 18 in.(457 mm)
Y-Axis Travel: 11 in. (279 mm)
Z-Axis Travel: 16.25 in. (412 mm)
Spindle Power: 2 hp (1.5 kW)
Spindle Speed: 7500 RPM
Spindle Transmission: Poly-V belt
Spindle Taper: R8
Tapping: Tension/Compression, Auto-Reversing, Thread Mill
X- and Y-Axis Feeds: 110 IPM (2.79 m/min)
Z-Axis Feeds: 90 IPM (2.29 m/min)
-EQUIPPED WITH-
Single-Phase 208-240 Vac, 50/60 Hz, 20 A Breaker Electrics
PathPilot CNC Control
