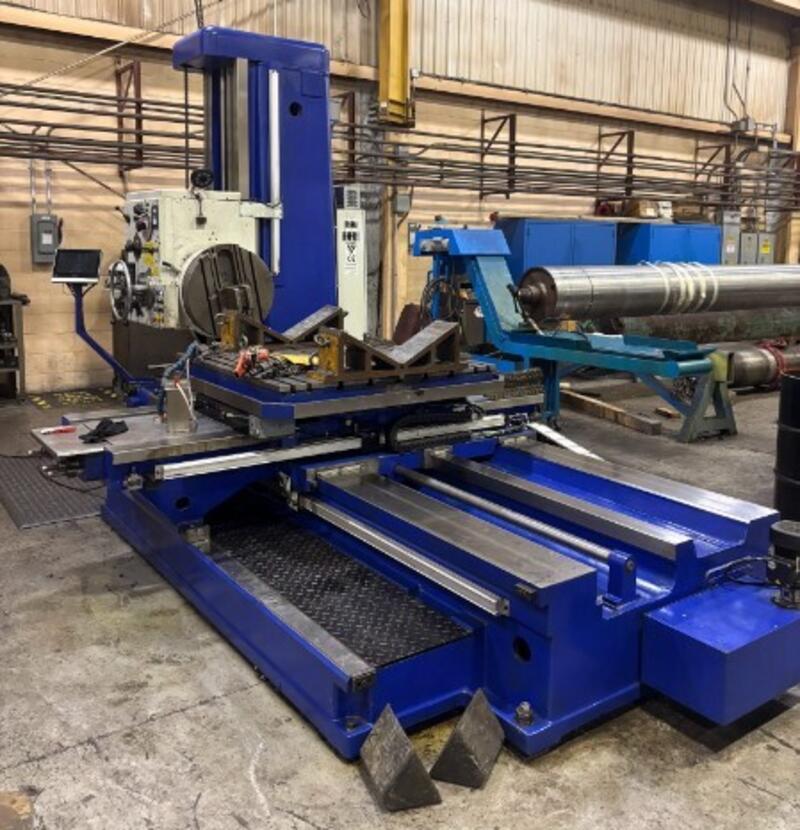

2021 Fermat W100A
Table Type HBM
SPINDLE DIAMETER: 3.9"
SPINDLE TAPER: ISO 50
SPINDLE TRAVEL (W): 35"
TABLE CROSS TRAVEL (X): 63"
HEAD VERTICAL TRAVEL (Y): 44"
SADDLE TRAVEL (Z): 49"
SPINDLE SPEEDS: 7- 1120 R.P.M.
WORK TRAVERSE: 35 INCHES PER MIN
RAPID TRAVERSE: 110 INCHES PER MIN
MAIN MOTOR POWER: 14 HP
TABLE SIZE (ROTARY) B: 49" x 49"
WEIGHT CAPACITY: 6,620 LB
DIMENSION OF MACHINE: 264.1 X 135 X 118"
MACHINE OVER ALL WEIGHT: 30,860 LB
-EQUIPPED WITH-
Machine with modern Motor and Electrics

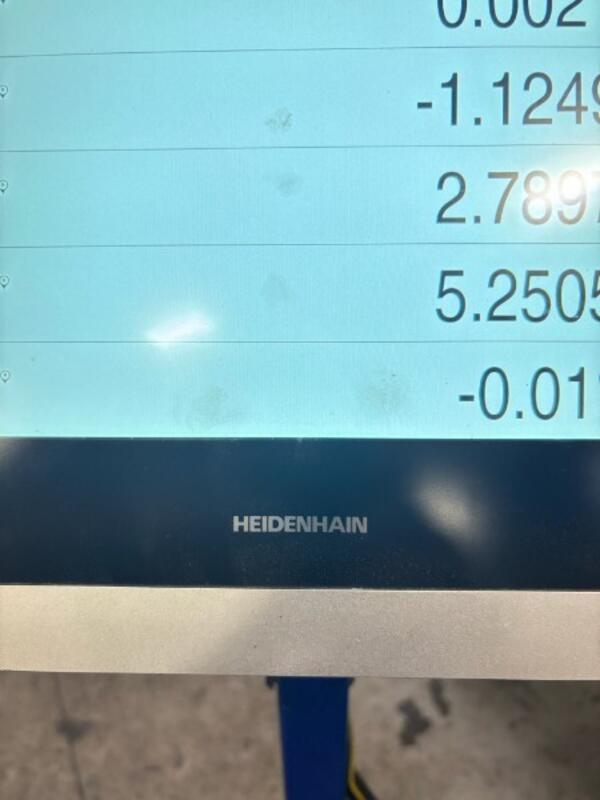

5 Axis DRO Heidenhain POSITIP 880
Scales on X, Y, Z and W-Axis
B-Axis measurement with a built-in rotary encoder and 4x90DEG Optical Readout
Long life Spindle and Spindle Bearings
Central Lubrication System for All Axes
Telescopic Covers
24 Inch Facing Head With Maximum Face Milling Diameter 35.5"
Facing Head
Built In Rotary Table with Rotary Encoder and 4x90DEG Optical Readout
Documentation
CE Electrical Specifications

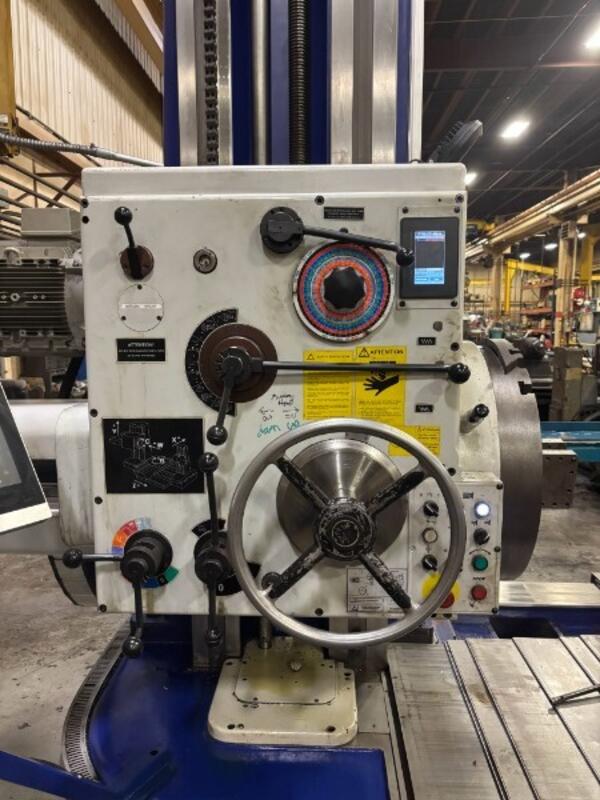

Headstock - spindle with cone ISO 50
Spindle with coupling drive
Scraping of gibs, new fixed pin
Rocker arm, fork, spindle keys
Striking lever, spring, wedges, dispatches
Metrical ruler
Manual wheel
Power tool clamping system, including hydraulic system
Way surfaces Z, Y, X are ground, mating slides are milled and surface, gibs ground and scraped
Sliding surface of headstock are scraped
Screws, bolts, bearing houses
Re-turning of clamping area of table
Wipers of sliding areas

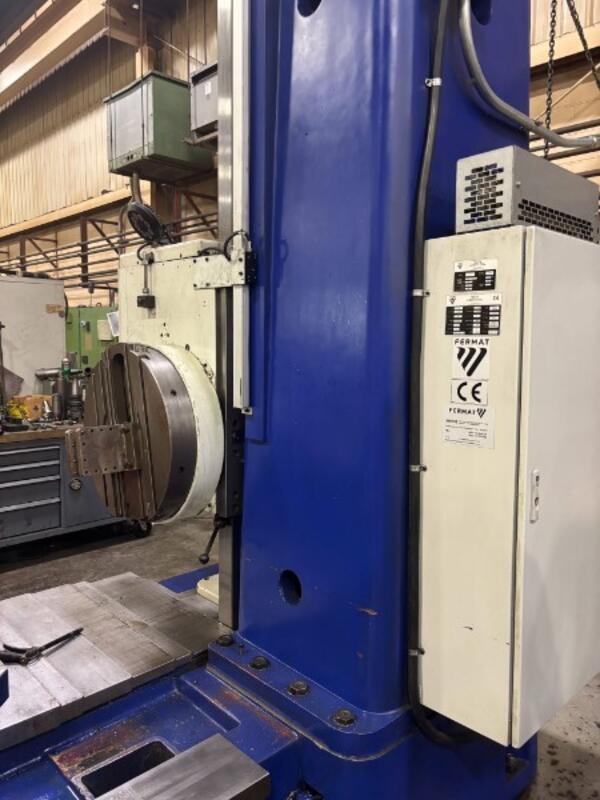

Electrical switchboard and all interconnections, energy grits
Lubrication distribution, including feeders
Digital measuring of axis X, Z, Y
