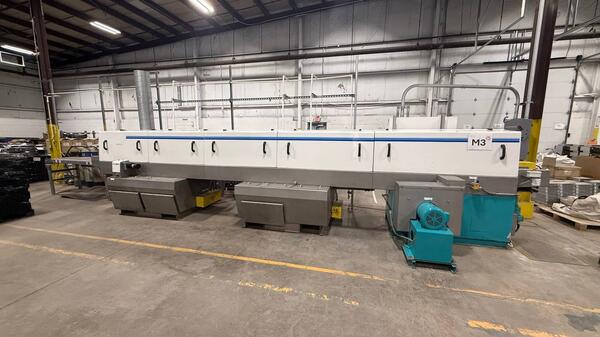

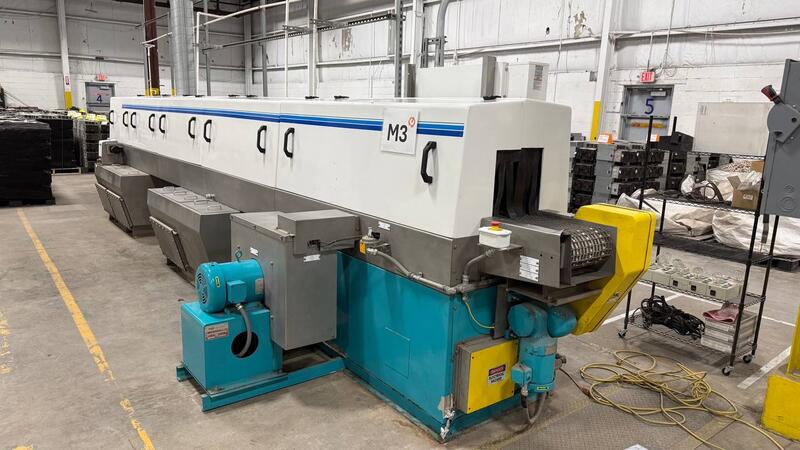

2022 Alliance AQUAMASTER CB-1200
Aqueous Parts Washer
Four stage conveyorized aqueous parts washer
with wash, rinse, rust inhibit and heated blowoff
Reconditioned by Alliance Manufacturing and placed in service February 2022
260 gallon wash tank with 54 kW electric heat
150 gallon rinse, 100 gallon rust inhibit with 24 kW heat
and a 7.5 HP heated blowoff at 1,200 CFM
Stainless steel tanks, conveyor and piping

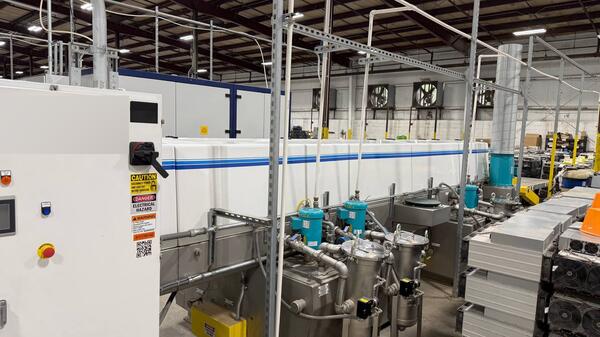

Micro filtration with contamination sensors on all three stages

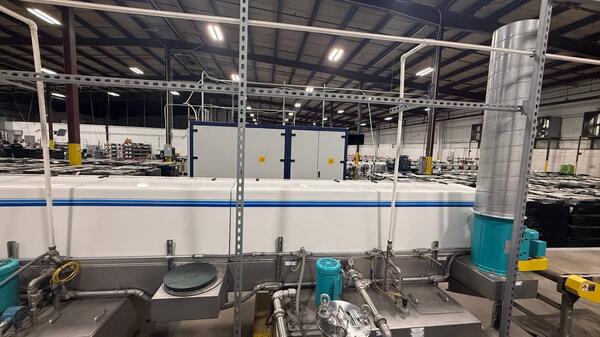

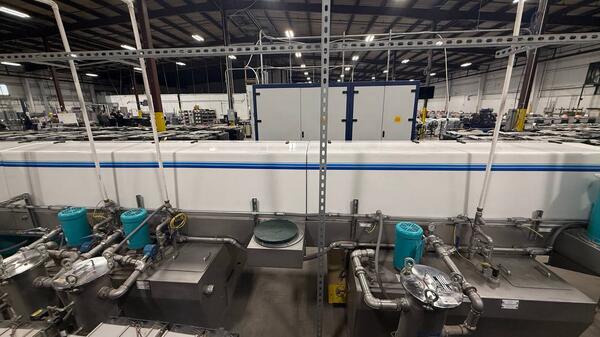

stainless steel pumps on the wash and rinse stages

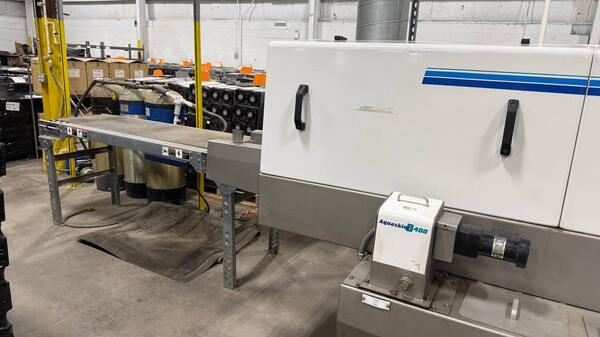

Aquaskim oil skimmer, exhaust fan

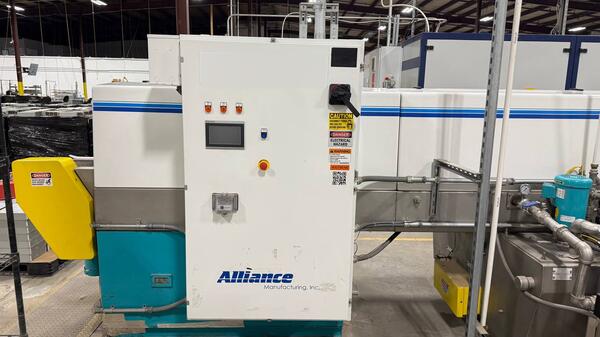

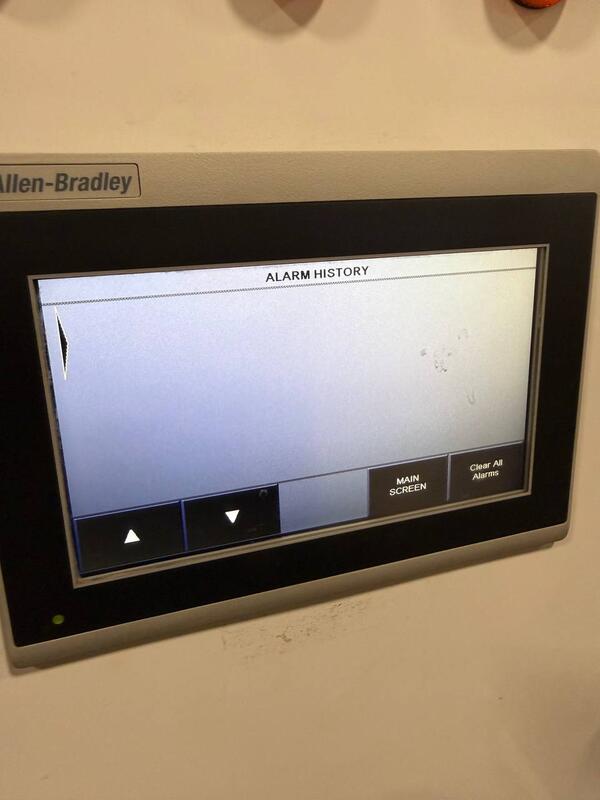

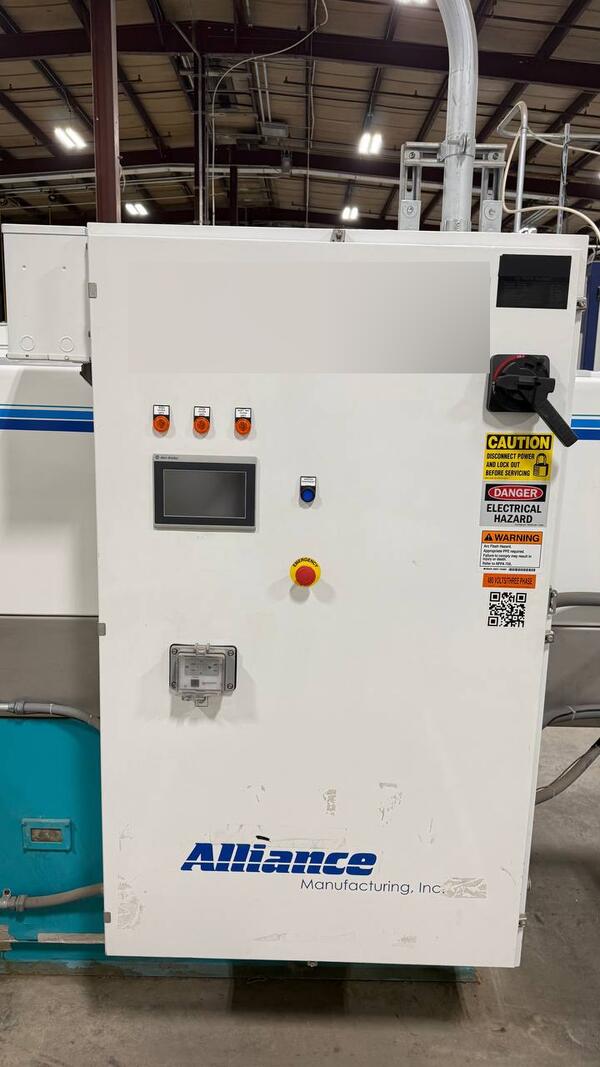

Allen-Bradley MicroLogix 1400 PLC with PanelView 800 color HMI
480V three phase, 153 full load amps on a 200 amp fused disconnect

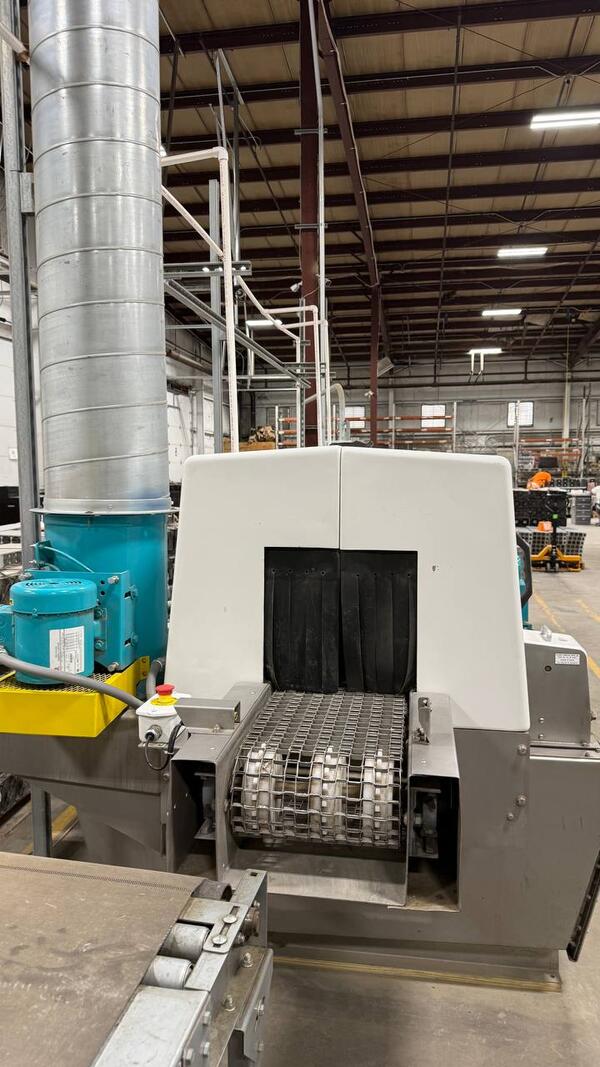

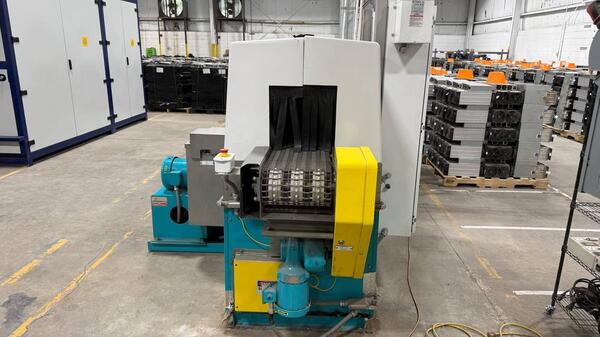

Conveyor 1 to 6 FPM, stainless flat wire belt. 26 feet 9 inches assembled
ships as three modules totaling about 10,000 pounds
Manuals, schematics, approval drawings and PLC program backup included
