2022 Mazak VARIAXIS I-600
Vertical Machining Center
X-Axis Travel: 20.08"
Y-Axis Travel: 35.83"
Z-Axis Travel: 20.08"
Spindle Speed: 18,000 RPM
Spindle Taper: HSK 63
Spindle Motor: 47 HP
Tool Magazine Capacity: 80 ATC
Control: Mazatrol Smooth AI
Chip Removal: LNS SF Compact Chip Conveyor

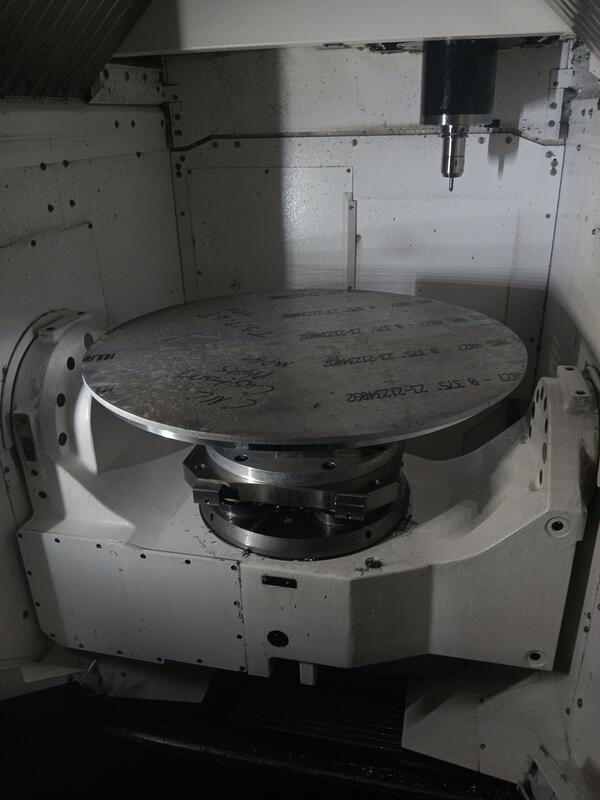

Additional Axis: 5th Axis Trunion Table
Coolant: Thru Spindle (1000 PSI)
-EQUIPPED WITH-
12 Pallet Pallet Tech System
Hand Held Coolant Nozzle
Work Light
High Speed Machining Software
Smoothing Software
SMC Plus Settings
EIA/ISO Function, Simultaneous 5-axis
Tool Tip Point Control/Simultaneous 5-axis
5-axis Spline Interpolation
Fine Spline Interpolation
Auto Pallet Changing
1000psi Spindle Through Coolant (T8)
LNS Turbo SF Compact Rear Exit Chip Conveyor w/43" discharge Height
AI Thermal Shield
Cooled Ball Screws
Spindle Chiller
Auto Power On/off + Warmup
Mazak's Hybrid Roller Guide Ways
RMP600 Radio Part Probe
GIS Supplied TS27R Probe Kit for tool setting & tool wear.
Workpiece Air Blast
Smooth Link
Smooth Set & Inspect
Mist Collector
Work Holding (3 jaw chuck, 2x 5th axis vises, & 3 kurt vises)
Tooling (35 HSK tool holders with drills & end mills)
