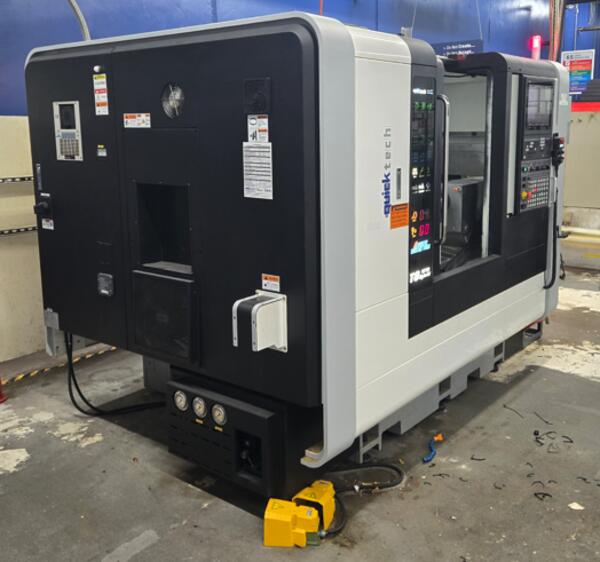

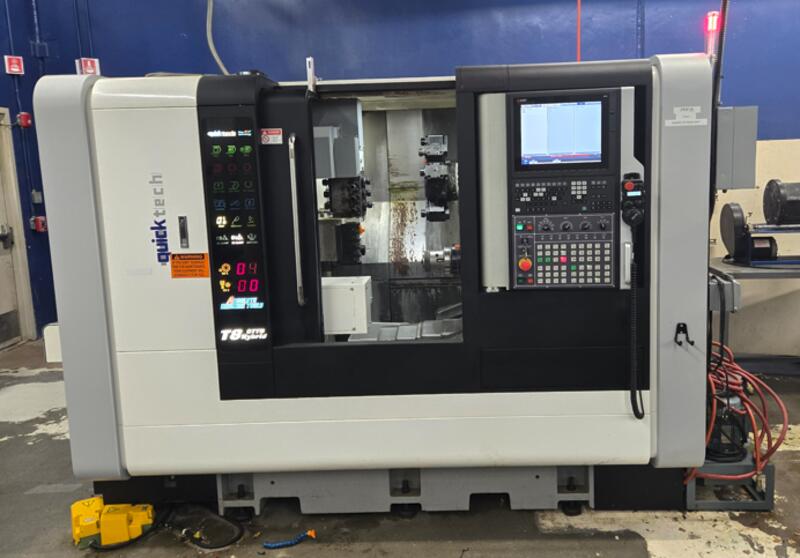

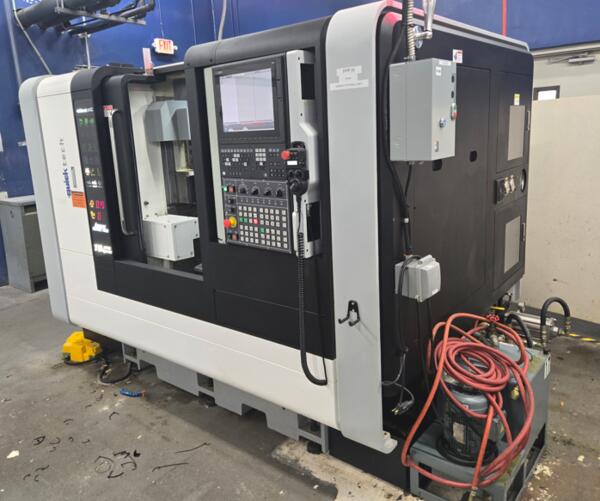

2022 Quicktech T8 HYBRID
9-Axis Twin Spindle Turn-Mill Center
Main Spindle Motor: 15 HP (11 kW)
Main Spindle Speed: 4,000 RPM
Main Chuck: 8" 3-jaw or 60 mm collet
Main Bar Capacity: 65 mm (2.56") with chuck / 60 mm with collet
Main Spindle Nose: A2-6
Sub-Spindle Motor: 7.5 HP
Sub-Spindle Speed: 4,000 RPM
Sub-Spindle Nose: A2-5
Sub-Spindle Bar Capacity: 32 mm (1.26")
Maximum Turning Diameter: 11.8" (300 mm)
Maximum Turning Length: 13.8" (350 mm)
Distance Between Centers: 20" (508 mm)
Swing Over Bed: 19.7" (500 mm)
-EQUIPPED WITH-
9 Axis (X1, Y1, Z1, C1, X2, Y2, C2, B-Axis)
Twin Spindle

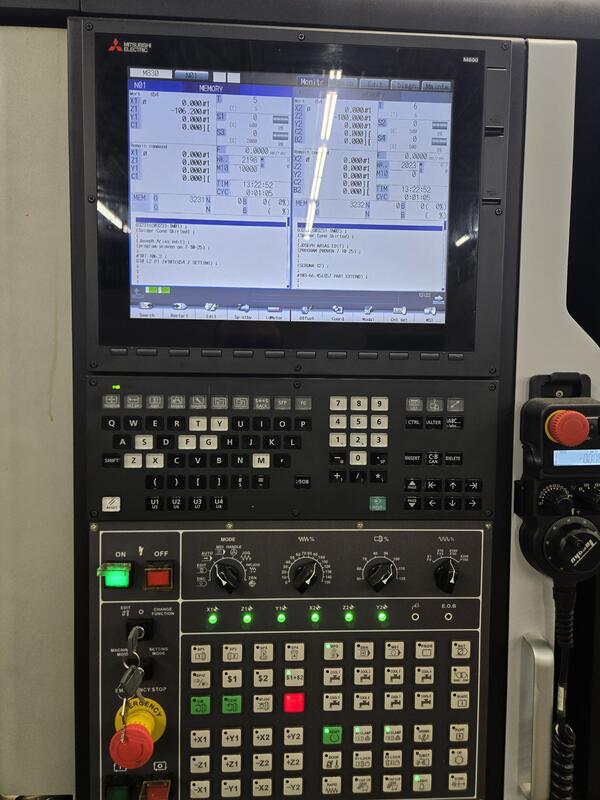

Mitsubishi M800 CNC Control
Standard Features

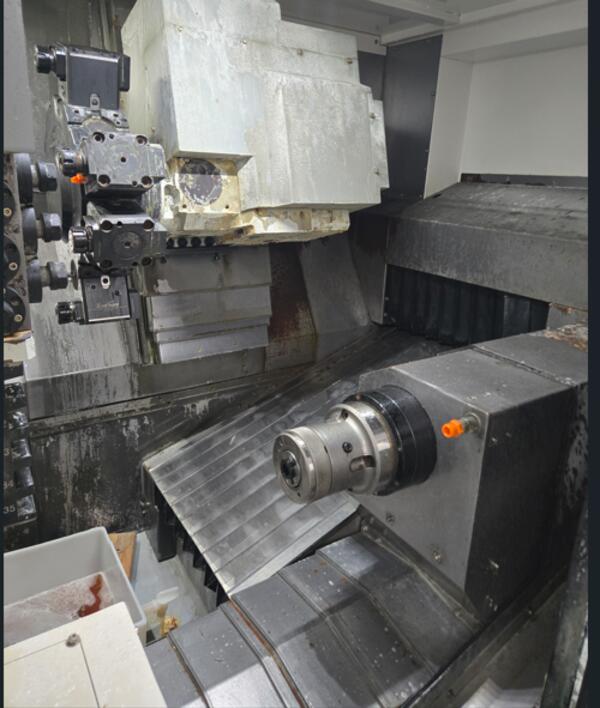

Twin opposed spindles
Simultaneous machining (Flexible Duo System)
True Y-axis machining
Full 360° programmable B-axis
C-axis interpolation on both spindles
Rigid tapping

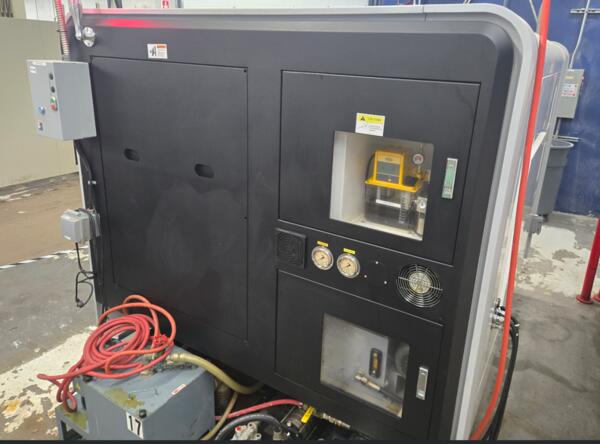

Automatic lubrication
Bar feeder interface
