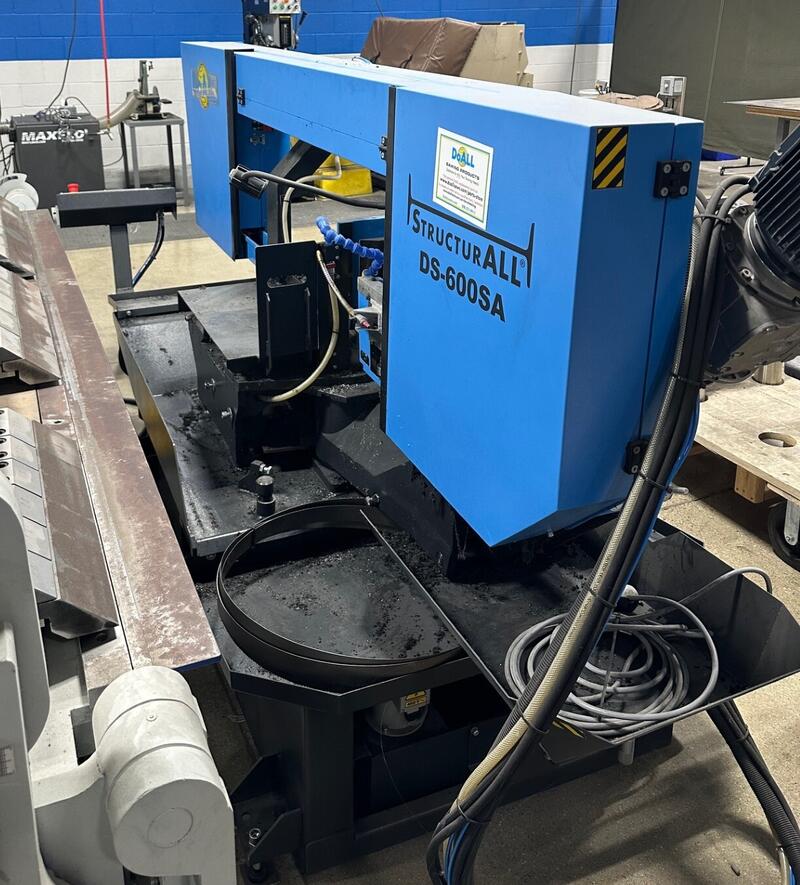

2023 DoAll DS-600SA
Semi-Automatic Horizontal Bandsaw
Cutting Capacity Round Tube: 18" (460mm)
Cutting Capacity Rectangle: 23.5" x 18" (600x460mm)
Cutting Capacity Round Solid: 15.75" (400mm)
Miter Cutting: 60° left and 60° right
Nesting Capacity (Min to Max): 0.20" (5mm) to 23.6 x 9.8" (600x250mm)
Capacity at 45°: Round: 18" (460mm), Rectangle: 18.5" x 9.5" (470x240mm)
Capacity at 60°: Round: 12.6" (320mm), Rectangle: 13" x 7" (330x180mm)
Band Saw Blade: Width: 1.5" (41mm), Length: 212" (5380mm)
Band Speed: 65-328 fpm (20-100mpm)
Band Drive Motor: 5 hp (4kW)
Hydraulic Pump: 1 hp (0.75kW)
Coolant Pump: 0.07 hp (0.05kW)
Material Pass Line Height: 31-1/2" (800mm)
Machine Weight: 2646 lbs (1200kg)
Dimensions W x L x H: 136 x 45 x 65" (3457x1140x1650mm)
-EQUIPPED WITH-
Mitsubishi saw control
Variable frequency drive
Pulley-driven band brush
Overfeed protection
Digital read out of cutting angle
Hydraulic band tension
Work light
Mist-style band lubrication
Variable vise pressure control
Flood coolant
Tool kit
Complimentary DoALL cutting fluids package
One (1) complimentary DoALL bi-metal saw blade
Operations and parts manuals on CD or USB data stick

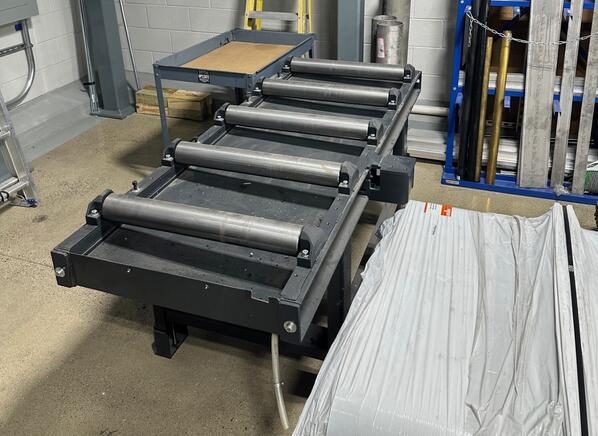

6.6ft input or output conveyor with drip pan/gutter.
