Giddings and Lewis 340T
Table Type HBM

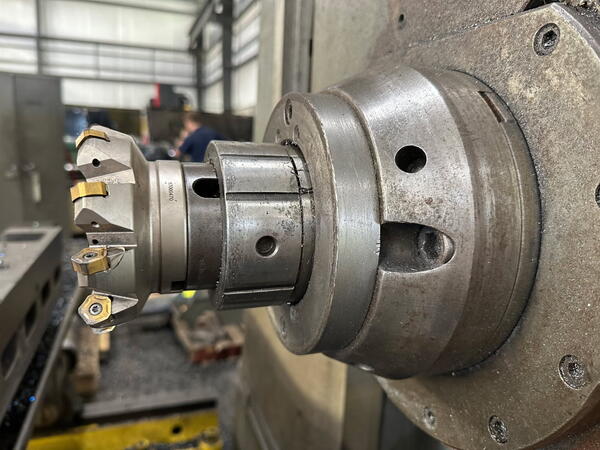

Diameter of spindle: 4"
Spindle taper: ISO 50*
Spindle speeds (43): 10 to 1300 RPM
Feeds High (18): .002 to .116 IPR
Low (18): .005 to .250 IPR
Table, saddle, head feeds (18): 5 to 25 IPM

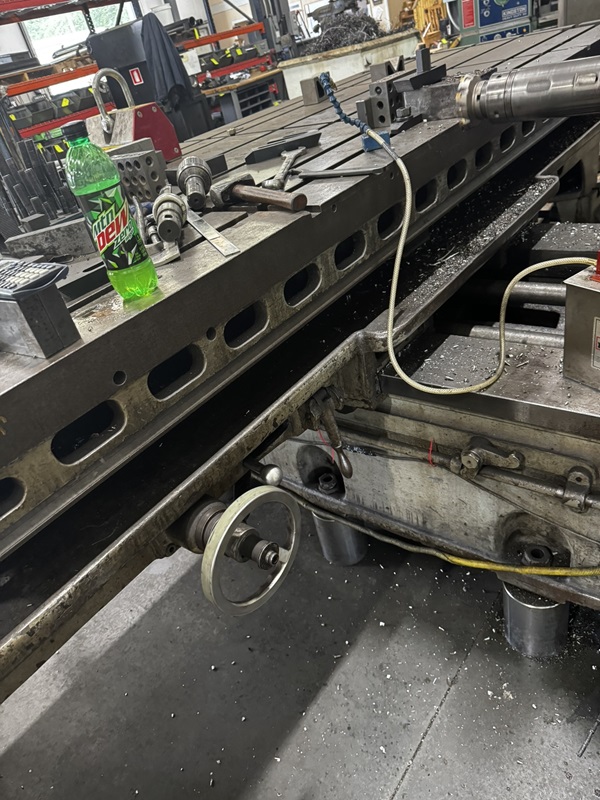

Table working surface: 48" x 122"
Table cross travel: 108"
Saddle longitudinal travel: 88"
Vertical head travel: 66
Max height table to spindle: 60"
Main motor: 20 HP
Approx weight: 43,000#
Approx dimensions: 212"L x 172"W x 132"H
-EQUIPPED WITH-

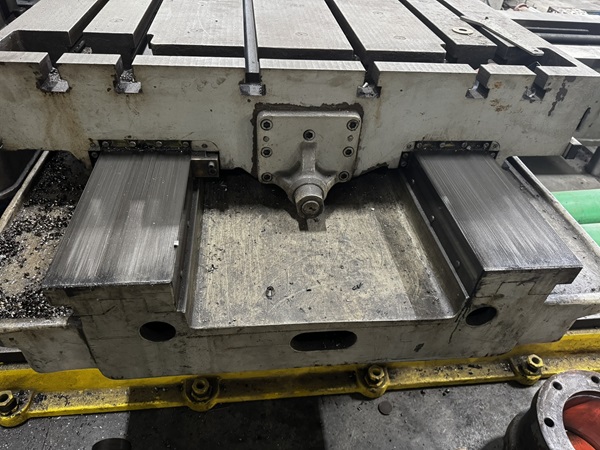

Hard bed and saddle ways
X Y Z Power rapid traverse
Outriggers (saddle supports)
Auto lube
Pendant control

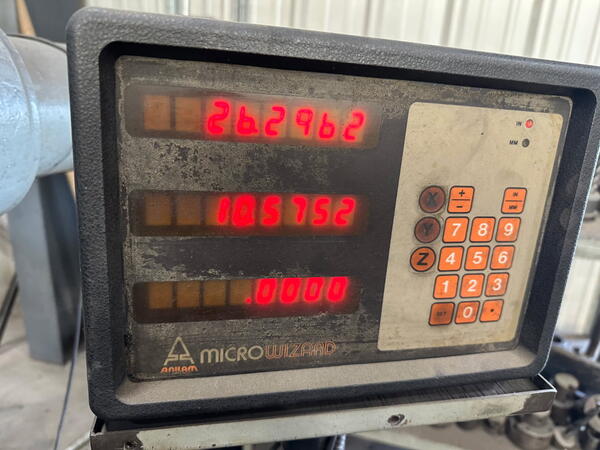

Anilam Micro Wizard 3 Axis DRO
Tailstock
*Spindle Conversion from MT to ISO 50
